Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	GridPointPair
Used by (from the same schema document)	Complex Type Grid , Complex Type LinkLocation
Abstract	no

XML Instance Representation

<...>

<pointPairCoordinateType> GridPointPairCoordinateType </pointPairCoordinateType> [1]

<side> Side </side> [1]

<pointPairInfo> [1]
Start Sequence [1..1000]

<startLongitude> GridPointLongitude </startLongitude> [0..1]

<startLatitude> GridPointLatitude </startLatitude> [0..1]

<endLongitude> GridPointLongitude </endLongitude> [0..1]

<endLatitude> GridPointLatitude </endLatitude> [0..1]

<gridId> Int-index8 </gridId> [0..1]

<startLatitudeGridDelta> GridPointLatLonDelta </startLatitudeGridDelta> [1]

<startLongitudeGridDelta> GridPointLatLonDelta </startLongitudeGridDelta> [1]

<endLatitudeGridDelta> GridPointLatLonDelta </endLatitudeGridDelta> [1]

<endLongitudeGridDelta> GridPointLatLonDelta </endLongitudeGridDelta> [1]

<endLatitudePointDelta> GridLatLonPointDelta </endLatitudePointDelta> [1]

<endLongitudePointDelta> GridLatLonPointDelta </endLongitudePointDelta> [1]

<startAltitudeGridDelta> GridAltitudeDelta </startAltitudeGridDelta> [0..1]

<endAltitudeGridDelta> GridAltitudeDelta </endAltitudeGridDelta> [0..1]

<offsetStart> NormalizedDistance </offsetStart> [0..1]

<offsetEnd> NormalizedDistance </offsetEnd> [0..1]

End Sequence
</pointPairInfo>

<localGridPointPair> local:GridPointPair </localGridPointPair> [0..1]

</...>

Schema Component Representation

<xs:complexType name="GridPointPair">

<xs:sequence>

<xs:element name="pointPairCoordinateType" type=" GridPointPairCoordinateType "/>

<xs:element name="side" type=" Side "/>

<xs:element name="pointPairInfo">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:sequence>

<xs:element name="startLongitude" type=" GridPointLongitude " minOccurs="0"/>

<xs:element name="startLatitude" type=" GridPointLatitude " minOccurs="0"/>

<xs:element name="endLongitude" type=" GridPointLongitude " minOccurs="0"/>

<xs:element name="endLatitude" type=" GridPointLatitude " minOccurs="0"/>

<xs:element name="gridId" type=" Int-index8 " minOccurs="0"/>

<xs:element name="startLatitudeGridDelta" type=" GridPointLatLonDelta "/>

<xs:element name="startLongitudeGridDelta" type=" GridPointLatLonDelta "/>

<xs:element name="endLatitudeGridDelta" type=" GridPointLatLonDelta "/>

<xs:element name="endLongitudeGridDelta" type=" GridPointLatLonDelta "/>

<xs:element name="endLatitudePointDelta" type=" GridLatLonPointDelta "/>

<xs:element name="endLongitudePointDelta" type=" GridLatLonPointDelta "/>

<xs:element name="startAltitudeGridDelta" type=" GridAltitudeDelta " minOccurs="0"/>

<xs:element name="endAltitudeGridDelta" type=" GridAltitudeDelta " minOccurs="0"/>

<xs:element name="offsetStart" type=" NormalizedDistance " minOccurs="0"/>

<xs:element name="offsetEnd" type=" NormalizedDistance " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localGridPointPair" type=" local:GridPointPair " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

Generated by <oXygen/> XML Editor using a modified version of xs3p that adds schema diagrams and chunking support. Last modified:

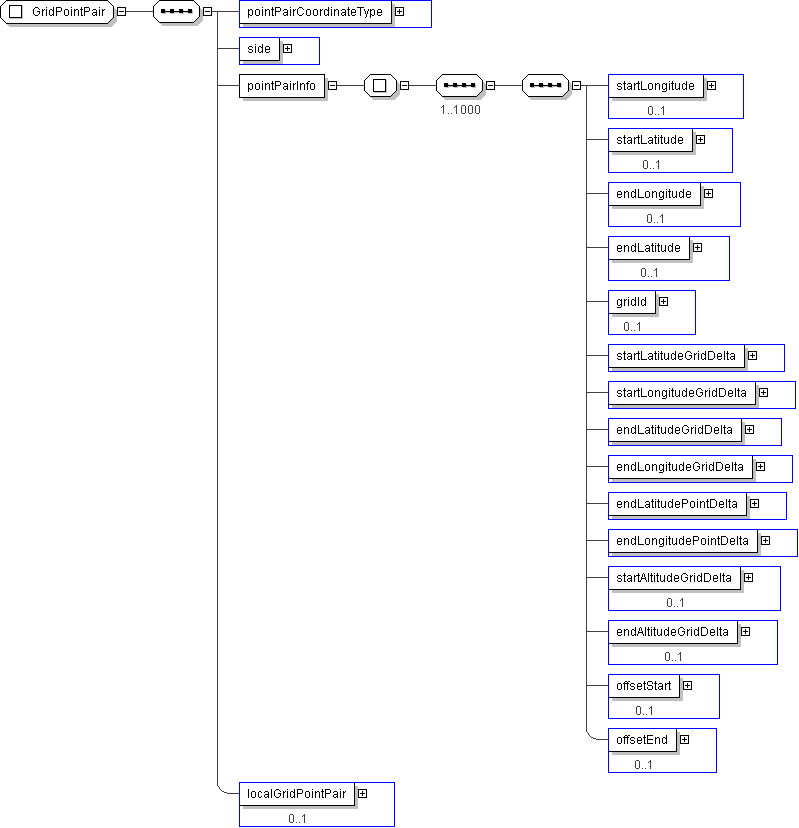

Complex Type: GridPointPair
