Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	Grid
Used by (from the same schema document)	Complex Type LocationReference
Abstract	no

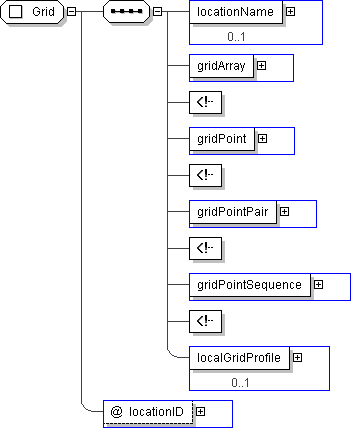

XML Instance Representation

<...
locationID=" String-index64 [0..1]">

<locationName> Text-name255 </locationName> [0..1]

<gridArray> GridArray </gridArray> [1]

<gridPoint> GridPoint </gridPoint> [1]

<gridPointPair> GridPointPair </gridPointPair> [1]

<gridPointSequence> GridPointSequence </gridPointSequence> [1]

<localGridProfile> local:GridProfile </localGridProfile> [0..1]

</...>

Schema Component Representation

<xs:complexType name="Grid">

<xs:sequence>

<xs:element name="locationName" type=" Text-name255 " minOccurs="0"/>

<xs:element name="gridArray" type=" GridArray "/>

<-- sets of grids -->

<xs:element name="gridPoint" type=" GridPoint "/>

<-- sets of points -->

<xs:element name="gridPointPair" type=" GridPointPair "/>

<-- sets of set of points -->

<xs:element name="gridPointSequence" type=" GridPointSequence "/>

<-- set of points forming a line -->

<xs:element name="localGridProfile" type=" local:GridProfile " minOccurs="0"/>

</xs:sequence>

<xs:attribute name="locationID" type=" String-index64 "/>

</xs:complexType>
