Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

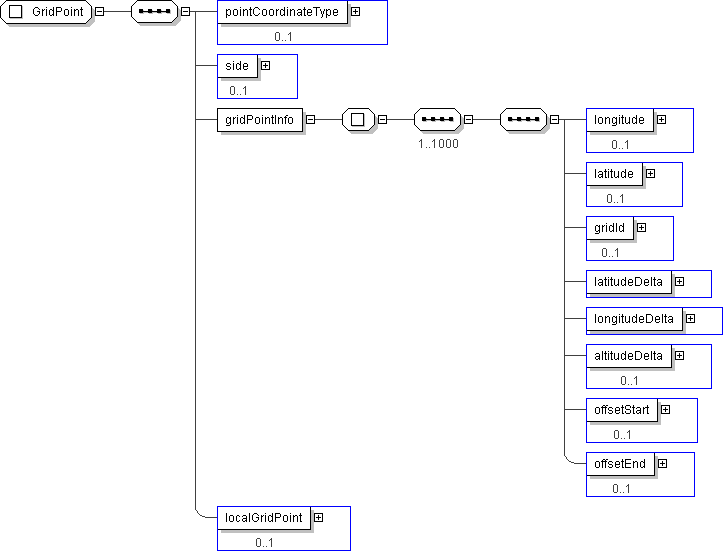

Name	GridPoint
Used by (from the same schema document)	Complex Type Grid , Complex Type PointLocation
Abstract	no

XML Instance Representation

<...>

<pointCoordinateType> GridPointCoordinateType </pointCoordinateType> [0..1]

<side> Side </side> [0..1]

<gridPointInfo> [1]
Start Sequence [1..1000]

<longitude> GridPointLongitude </longitude> [0..1]

<latitude> GridPointLatitude </latitude> [0..1]

<gridId> Int-index8 </gridId> [0..1]

<latitudeDelta> GridPointLatLonDelta </latitudeDelta> [1]

<longitudeDelta> GridPointLatLonDelta </longitudeDelta> [1]

<altitudeDelta> GridPointAltitudeDelta </altitudeDelta> [0..1]

<offsetStart> GridPointOffsetDistance </offsetStart> [0..1]

<offsetEnd> GridPointOffsetDistance </offsetEnd> [0..1]

End Sequence
</gridPointInfo>

<localGridPoint> local:GridPoint </localGridPoint> [0..1]

</...>

Schema Component Representation

<xs:complexType name="GridPoint">

<xs:sequence>

<xs:element name="pointCoordinateType" type=" GridPointCoordinateType " minOccurs="0"/>

<xs:element name="side" type=" Side " minOccurs="0"/>

<xs:element name="gridPointInfo">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="1000">

<xs:sequence>

<xs:element name="longitude" type=" GridPointLongitude " minOccurs="0"/>

<xs:element name="latitude" type=" GridPointLatitude " minOccurs="0"/>

<xs:element name="gridId" type=" Int-index8 " minOccurs="0"/>

<xs:element name="latitudeDelta" type=" GridPointLatLonDelta "/>

<xs:element name="longitudeDelta" type=" GridPointLatLonDelta "/>

<xs:element name="altitudeDelta" type=" GridPointAltitudeDelta " minOccurs="0"/>

<xs:element name="offsetStart" type=" GridPointOffsetDistance " minOccurs="0"/>

<xs:element name="offsetEnd" type=" GridPointOffsetDistance " minOccurs="0"/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localGridPoint" type=" local:GridPoint " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
