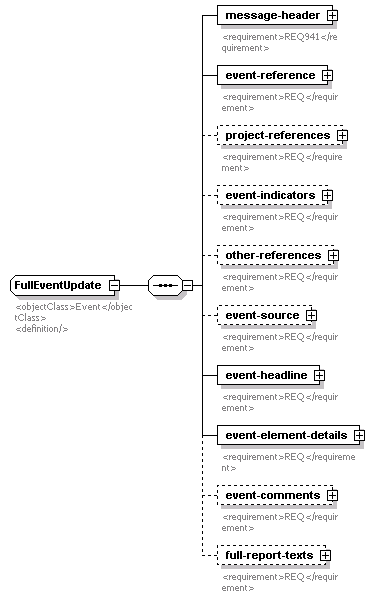

complexType FullEventUpdate
diagram
namespace http://www.ite.org/tmdd
children message-header event-reference project-references event-indicators other-references event-source event-headline event-element-details event-comments full-report-texts
used by
element fullEventUpdate
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="FullEventUpdate">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="message-header" type="MessageHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ941</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-reference" type="EventReference">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="project-references" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="project-reference" type="ProjectReferences"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-indicators" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="event-indicator" type="EventIndicator"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="other-references" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="other-reference" type="OtherReference"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-source" type="EventSource" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-headline" type="EventHeadline">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-element-details">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="event-element-detail" type="EventDetail"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-comments" type="AdditionalText" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="full-report-texts" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="full-report-text" type="FullReportText"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

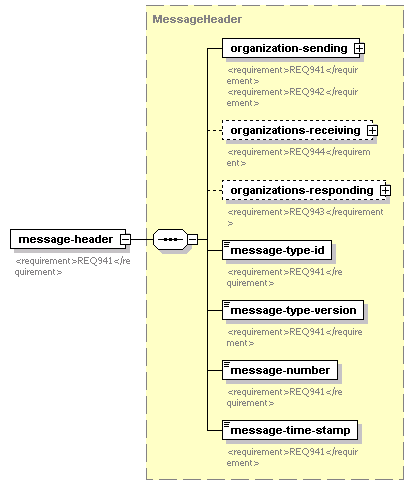

element FullEventUpdate/message-header
diagram
type MessageHeader
properties
isRef 0
content complex
children organization-sending organizations-receiving organizations-responding message-type-id message-type-version message-number message-time-stamp
annotation
documentation
<requirement>REQ941</requirement>
source <xs:element name="message-header" type="MessageHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ941</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

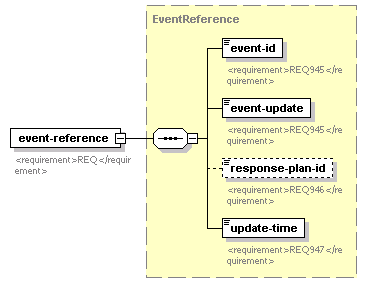

element FullEventUpdate/event-reference
diagram
type EventReference
properties
isRef 0
content complex
children event-id event-update response-plan-id update-time
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-reference" type="EventReference">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element FullEventUpdate/project-references
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children project-reference
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="project-references" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="project-reference" type="ProjectReferences"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

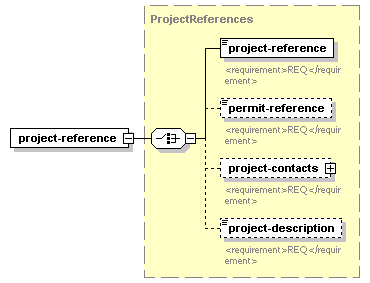

element FullEventUpdate/project-references/project-reference
diagram
type ProjectReferences
properties
isRef 0
content complex
children project-reference permit-reference project-contacts project-description
source <xs:element name="project-reference" type="ProjectReferences"/>

element FullEventUpdate/event-indicators
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-indicator
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-indicators" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="event-indicator" type="EventIndicator"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

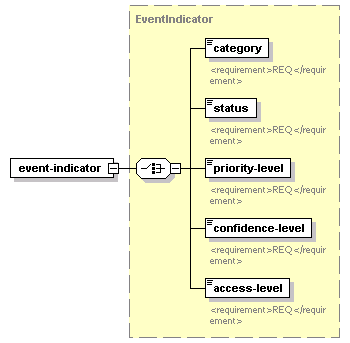

element FullEventUpdate/event-indicators/event-indicator
diagram
type EventIndicator
properties
isRef 0
content complex
children category status priority-level confidence-level access-level
source <xs:element name="event-indicator" type="EventIndicator"/>

element FullEventUpdate/other-references
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children other-reference
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="other-references" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="other-reference" type="OtherReference"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

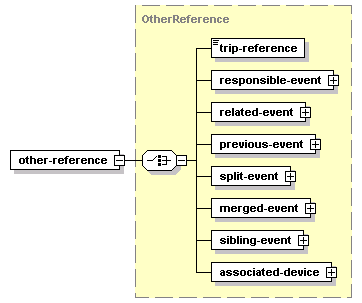

element FullEventUpdate/other-references/other-reference
diagram
type OtherReference
properties
isRef 0
content complex
children trip-reference responsible-event related-event previous-event split-event merged-event sibling-event associated-device
source <xs:element name="other-reference" type="OtherReference"/>

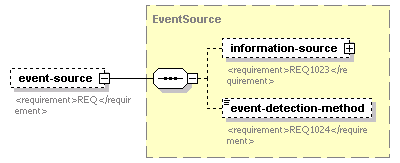

element FullEventUpdate/event-source
diagram
type EventSource
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children information-source event-detection-method
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-source" type="EventSource" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

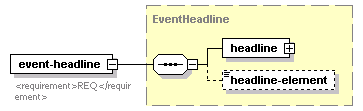

element FullEventUpdate/event-headline
diagram
type EventHeadline
properties
isRef 0
content complex
children headline headline-element
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-headline" type="EventHeadline">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element FullEventUpdate/event-element-details
diagram
properties
isRef 0
content complex
children event-element-detail
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-element-details">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="event-element-detail" type="EventDetail"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

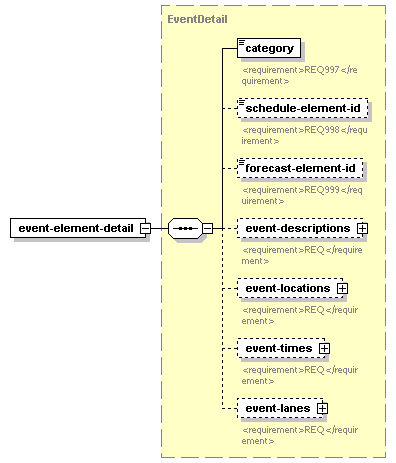

element FullEventUpdate/event-element-details/event-element-detail
diagram
type EventDetail
properties
isRef 0
content complex
children category schedule-element-id forecast-element-id event-descriptions event-locations event-times event-lanes
source <xs:element name="event-element-detail" type="EventDetail"/>

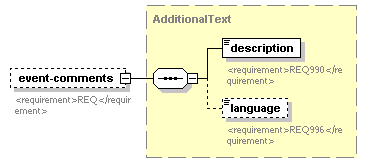

element FullEventUpdate/event-comments
diagram
type AdditionalText
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children description language
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-comments" type="AdditionalText" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element FullEventUpdate/full-report-texts
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children full-report-text
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="full-report-texts" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="full-report-text" type="FullReportText"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

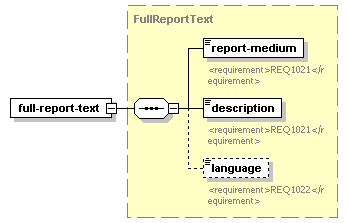

element FullEventUpdate/full-report-texts/full-report-text
diagram
type FullReportText
properties
isRef 0
content complex
children report-medium description language
source <xs:element name="full-report-text" type="FullReportText"/>
