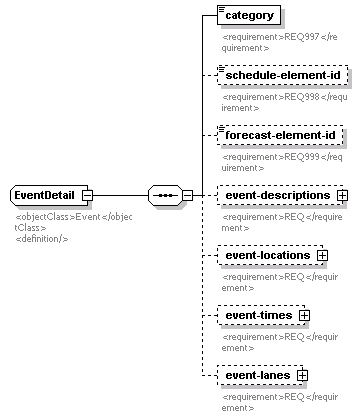

complexType EventDetail
diagram
namespace http://www.ite.org/tmdd
children category schedule-element-id forecast-element-id event-descriptions event-locations event-times event-lanes
used by
elements BasicEventUpdate/event-detail FullEventUpdate/event-element-details/event-element-detail
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="EventDetail">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="category" type="Event-category">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ997</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="schedule-element-id" type="Event-schedule-element-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ998</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="forecast-element-id" type="Event-forecast-element-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ999</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-descriptions" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="event-description" type="EventDescription"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-locations" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="20">
          <xs:element name="event-location" type="EventLocation"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-times" type="EventTimes" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-lanes" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="256">
          <xs:element name="event-lane" type="EventLane"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element EventDetail/category
diagram
type Event-category
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ997</requirement>
source <xs:element name="category" type="Event-category">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ997</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventDetail/schedule-element-id
diagram
type Event-schedule-element-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 999
annotation
documentation
<requirement>REQ998</requirement>
source <xs:element name="schedule-element-id" type="Event-schedule-element-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ998</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventDetail/forecast-element-id
diagram
type Event-forecast-element-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minInclusive 1
maxInclusive 999
annotation
documentation
<requirement>REQ999</requirement>
source <xs:element name="forecast-element-id" type="Event-forecast-element-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ999</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventDetail/event-descriptions
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-description
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-descriptions" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="event-description" type="EventDescription"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

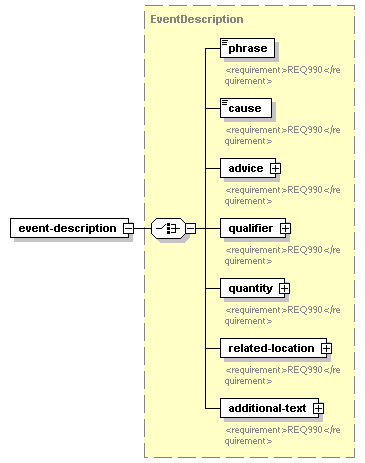

element EventDetail/event-descriptions/event-description
diagram
type EventDescription
properties
isRef 0
content complex
children phrase cause advice qualifier quantity related-location additional-text
source <xs:element name="event-description" type="EventDescription"/>

element EventDetail/event-locations
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-location
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-locations" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="20">
      <xs:element name="event-location" type="EventLocation"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

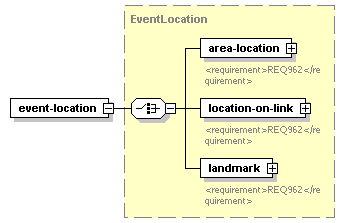

element EventDetail/event-locations/event-location
diagram
type EventLocation
properties
isRef 0
content complex
children area-location location-on-link landmark
source <xs:element name="event-location" type="EventLocation"/>

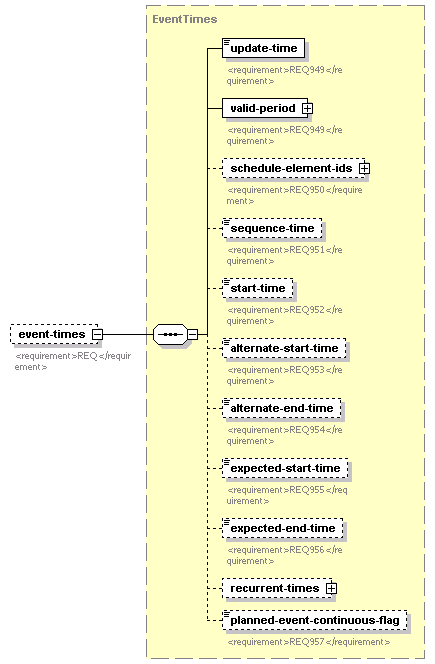

element EventDetail/event-times
diagram
type EventTimes
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children update-time valid-period schedule-element-ids sequence-time start-time alternate-start-time alternate-end-time expected-start-time expected-end-time recurrent-times planned-event-continuous-flag
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-times" type="EventTimes" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element EventDetail/event-lanes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-lane
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-lanes" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="256">
      <xs:element name="event-lane" type="EventLane"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

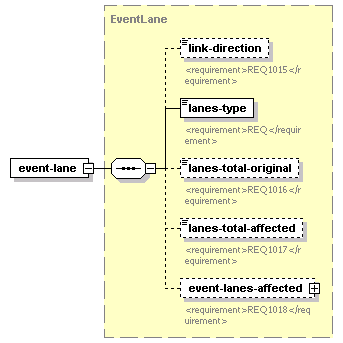

element EventDetail/event-lanes/event-lane
diagram
type EventLane
properties
isRef 0
content complex
children link-direction lanes-type lanes-total-original lanes-total-affected event-lanes-affected
source <xs:element name="event-lane" type="EventLane"/>


XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
