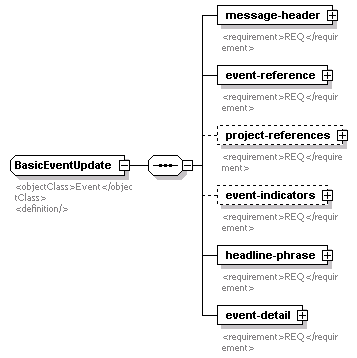

complexType BasicEventUpdate
diagram
namespace http://www.ite.org/tmdd
children message-header event-reference project-references event-indicators headline-phrase event-detail
used by
element basicEventUpdate
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="BasicEventUpdate">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="message-header" type="MessageHeader">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-reference" type="EventReference">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="project-references" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="project-reference" type="ProjectReferences"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-indicators" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
      <xs:complexType>
        <xs:sequence maxOccurs="64">
          <xs:element name="event-indicator" type="EventIndicator"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="headline-phrase" type="EventType">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-detail" type="EventDetail">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

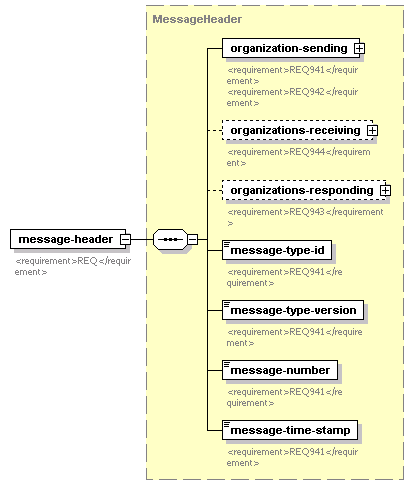

element BasicEventUpdate/message-header
diagram
type MessageHeader
properties
isRef 0
content complex
children organization-sending organizations-receiving organizations-responding message-type-id message-type-version message-number message-time-stamp
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="message-header" type="MessageHeader">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

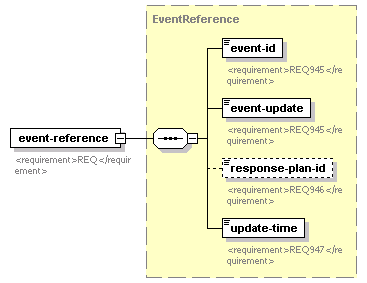

element BasicEventUpdate/event-reference
diagram
type EventReference
properties
isRef 0
content complex
children event-id event-update response-plan-id update-time
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-reference" type="EventReference">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element BasicEventUpdate/project-references
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children project-reference
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="project-references" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="project-reference" type="ProjectReferences"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

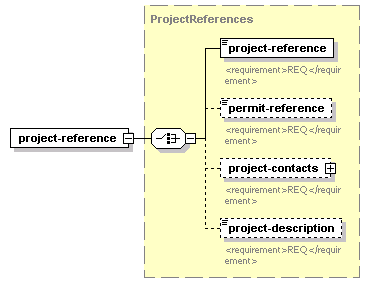

element BasicEventUpdate/project-references/project-reference
diagram
type ProjectReferences
properties
isRef 0
content complex
children project-reference permit-reference project-contacts project-description
source <xs:element name="project-reference" type="ProjectReferences"/>

element BasicEventUpdate/event-indicators
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-indicator
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-indicators" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence maxOccurs="64">
      <xs:element name="event-indicator" type="EventIndicator"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

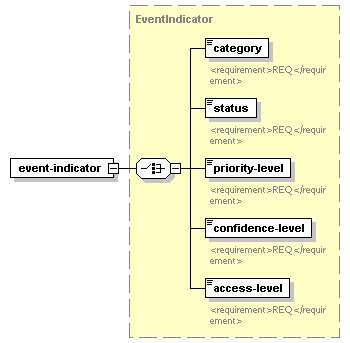

element BasicEventUpdate/event-indicators/event-indicator
diagram
type EventIndicator
properties
isRef 0
content complex
children category status priority-level confidence-level access-level
source <xs:element name="event-indicator" type="EventIndicator"/>

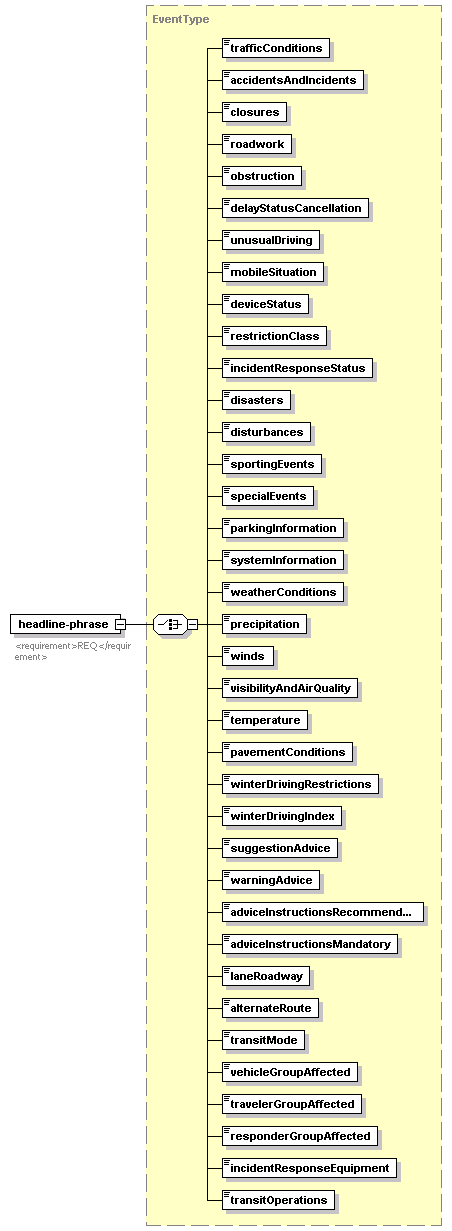

element BasicEventUpdate/headline-phrase
diagram
type EventType
properties
isRef 0
content complex
children trafficConditions accidentsAndIncidents closures roadwork obstruction delayStatusCancellation unusualDriving mobileSituation deviceStatus restrictionClass incidentResponseStatus disasters disturbances sportingEvents specialEvents parkingInformation systemInformation weatherConditions precipitation winds visibilityAndAirQuality temperature pavementConditions winterDrivingRestrictions winterDrivingIndex suggestionAdvice warningAdvice adviceInstructionsRecommendations adviceInstructionsMandatory laneRoadway alternateRoute transitMode vehicleGroupAffected travelerGroupAffected responderGroupAffected incidentResponseEquipment transitOperations
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="headline-phrase" type="EventType">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

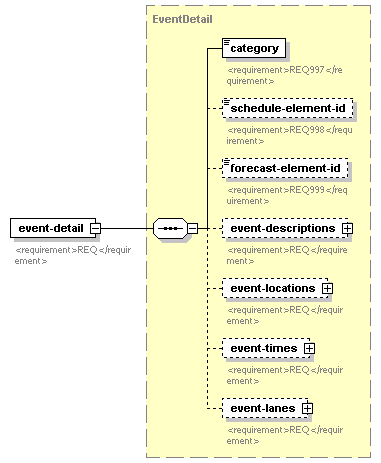

element BasicEventUpdate/event-detail
diagram
type EventDetail
properties
isRef 0
content complex
children category schedule-element-id forecast-element-id event-descriptions event-locations event-times event-lanes
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="event-detail" type="EventDetail">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
