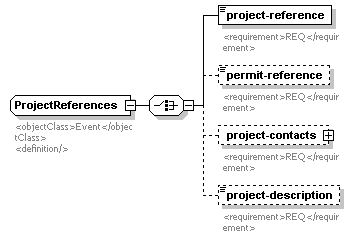

complexType ProjectReferences
diagram
namespace http://www.ite.org/tmdd
children project-reference permit-reference project-contacts project-description
used by
elements FullEventUpdate/project-references/project-reference BasicEventUpdate/project-references/project-reference
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="ProjectReferences">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:choice>
    <xs:element name="project-reference" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="permit-reference" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="project-contacts" type="OrganizationInformation" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="project-description" type="Event-project-description" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:choice>
</xs:complexType>

element ProjectReferences/project-reference
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="project-reference" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ProjectReferences/permit-reference
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="permit-reference" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

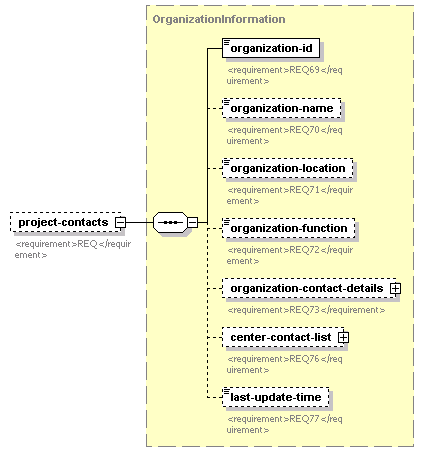

element ProjectReferences/project-contacts
diagram
type OrganizationInformation
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="project-contacts" type="OrganizationInformation" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element ProjectReferences/project-description
diagram
type Event-project-description
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 2048
annotation
documentation
<requirement>REQ</requirement>
source <xs:element name="project-description" type="Event-project-description" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
