complexType FullReportText

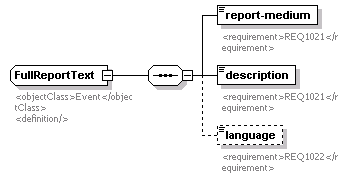

diagram
namespace http://www.ite.org/tmdd
children report-medium description language
used by
element FullEventUpdate/full-report-texts/full-report-text
annotation
documentation
<objectClass>Event</objectClass>
<definition/>
source <xs:complexType name="FullReportText">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="report-medium" type="Event-report-medium">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1021</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="description" type="Event-description-notes-and-comments">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1021</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="language" type="Event-description-language" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ1022</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element FullReportText/report-medium
diagram
type Event-report-medium
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ1021</requirement>
source <xs:element name="report-medium" type="Event-report-medium">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1021</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element FullReportText/description
diagram
type Event-description-notes-and-comments
properties
isRef 0
content simple
facets
minLength 1
maxLength 2048
annotation
documentation
<requirement>REQ1021</requirement>
source <xs:element name="description" type="Event-description-notes-and-comments">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1021</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element FullReportText/language
diagram
type Event-description-language
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ1022</requirement>
source <xs:element name="language" type="Event-description-language" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ1022</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
