complexType AdditionalText

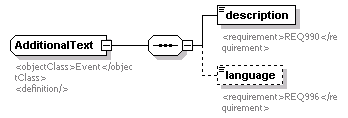

diagram

namespace

http://www.ite.org/tmdd

children

description language

used by

elements

EventDescription/additional-text FullEventUpdate/event-comments

annotation

documentation

<objectClass>Event</objectClass>
<definition/>

source

<xs:complexType name="AdditionalText">
<xs:annotation>
    <xs:documentation>
      <objectClass>Event</objectClass>
      <definition/>
    </xs:documentation>
</xs:annotation>
<xs:sequence>
    <xs:element name="description" type="Event-description-notes-and-comments">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ990</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="language" type="Event-description-language" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ996</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
</xs:sequence>
</xs:complexType>

element AdditionalText/description

diagram

type

Event-description-notes-and-comments

properties

isRef	0
content	simple

facets

minLength	1
maxLength	2048

annotation

documentation

<requirement>REQ990</requirement>

source

<xs:element name="description" type="Event-description-notes-and-comments">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ990</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>

element AdditionalText/language

diagram

type

Event-description-language

properties

isRef	0
minOcc	0
maxOcc	1
content	simple

annotation

documentation

<requirement>REQ996</requirement>

source

<xs:element name="language" type="Event-description-language" minOccurs="0">
<xs:annotation>
    <xs:documentation>
      <requirement>REQ996</requirement>
    </xs:documentation>
</xs:annotation>
</xs:element>
