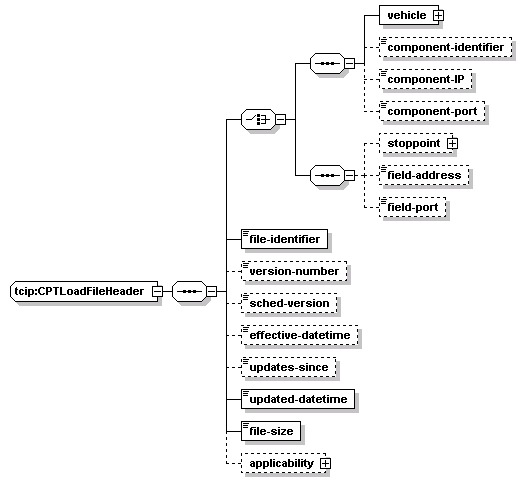

complexType tcip:CPTLoadFileHeader

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
used by	elements  tcip:CptBadLoadRequest/bad-Request tcip:CptCurrentVersionNotice/current-files/current-file tcip:CcOnboardConfigurationData/file-header tcip:CcOnboardSoftware/file-header tcip:TspBusinessRules/fileHeader tcip:SchVehicleAssignmentFile/fileHeader tcip:SchTimepointsFile/fileHeader tcip:SchRunScheduleFile/fileHeader tcip:SchRouteScheduleFile/fileHeader tcip:SchPatternFile/fileHeader tcip:SchOperatorAssignmentFile/fileHeader tcip:SchCalendarFile/fileHeader tcip:SchBlockScheduleFile/fileHeader tcip:FcFareLoadData/fileHeader tcip:CptStoppointsFile/fileHeader tcip:CcPTVAlarmLimits/fileHeader tcip:CcGISFile/fileHeader tcip:CcCannedMessageText/fileHeader tcip:CcAnnouncementInfo/fileHeader tcip:CptOnboardVersionNotice/files-on-hand/files-on-hand-item tcip:CptLoadControl/files-on-Hand/files-on-Hand-item tcip:CptCurrentVersionNotice/files-to-delete/files-to-delete-item tcip:CptLoadControl/most-Recent-Load-File tcip:CptLoadControl/next-file-requested
source	<xs:complexType name="CPTLoadFileHeader">   <xs:sequence>     <xs:choice>       <xs:sequence>         <xs:element name="vehicle" type="CPTVehicleIden"/>         <xs:element name="component-identifier" type="OB-MID" minOccurs="0"/>         <xs:element name="component-IP" type="CPT-IP-Address" minOccurs="0"/>         <xs:element name="component-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>       </xs:sequence>       <xs:sequence>         <xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>         <!-- required if a stoppoint -->         <xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>         <xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>       </xs:sequence>     </xs:choice>     <xs:element name="file-identifier" type="CPT-FileIdentifier"/>     <xs:element name="version-number" type="CPT-FileVersion" minOccurs="0"/>     <xs:element name="sched-version" type="SCH-TimetableVersionID" minOccurs="0"/>     <xs:element name="effective-datetime" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="updates-since" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="updated-datetime" type="CPT-DateTime"/>     <xs:element name="file-size" type="CPT-FileSize"/>     <xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CPTLoadFileHeader/vehicle

diagram
type	tcip:CPTVehicleIden
properties	isRef  0 content  complex
children	vehicle-id agency-id vin
source	<xs:element name="vehicle" type="CPTVehicleIden"/>

element tcip:CPTLoadFileHeader/component-identifier

diagram
type	tcip:OB-MID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-identifier" type="OB-MID" minOccurs="0"/>

element tcip:CPTLoadFileHeader/component-IP

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-IP" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CPTLoadFileHeader/component-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="component-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CPTLoadFileHeader/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:CPTLoadFileHeader/field-address

diagram
type	tcip:CPT-IP-Address
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-address" type="CPT-IP-Address" minOccurs="0"/>

element tcip:CPTLoadFileHeader/field-port

diagram
type	tcip:CPT-UDP-TCP-PortNumber
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="field-port" type="CPT-UDP-TCP-PortNumber" minOccurs="0"/>

element tcip:CPTLoadFileHeader/file-identifier

diagram
type	tcip:CPT-FileIdentifier
properties	isRef  0 content  simple
source	<xs:element name="file-identifier" type="CPT-FileIdentifier"/>

element tcip:CPTLoadFileHeader/version-number

diagram
type	tcip:CPT-FileVersion
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="version-number" type="CPT-FileVersion" minOccurs="0"/>

element tcip:CPTLoadFileHeader/sched-version

diagram
type	tcip:SCH-TimetableVersionID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="sched-version" type="SCH-TimetableVersionID" minOccurs="0"/>

element tcip:CPTLoadFileHeader/effective-datetime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="effective-datetime" type="CPT-DateTime" minOccurs="0"/>

element tcip:CPTLoadFileHeader/updates-since

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="updates-since" type="CPT-DateTime" minOccurs="0"/>

element tcip:CPTLoadFileHeader/updated-datetime

diagram
type	tcip:CPT-DateTime
properties	isRef  0 content  simple
source	<xs:element name="updated-datetime" type="CPT-DateTime"/>

element tcip:CPTLoadFileHeader/file-size

diagram
type	tcip:CPT-FileSize
properties	isRef  0 content  simple
source	<xs:element name="file-size" type="CPT-FileSize"/>

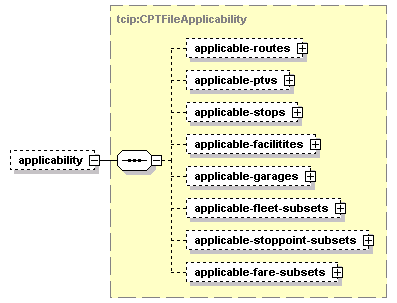

element tcip:CPTLoadFileHeader/applicability

diagram
type	tcip:CPTFileApplicability
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	applicable-routes applicable-ptvs applicable-stops applicable-facilitites applicable-garages applicable-fleet-subsets applicable-stoppoint-subsets applicable-fare-subsets
source	<xs:element name="applicability" type="CPTFileApplicability" minOccurs="0"/>
