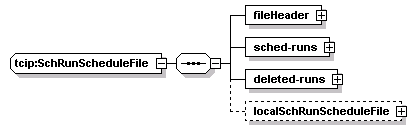

complexType tcip:SchRunScheduleFile
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader sched-runs deleted-runs localSchRunScheduleFile
used by
element tcip:schRunScheduleFile
source <xs:complexType name="SchRunScheduleFile">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="sched-runs">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="sched-run" type="SCHRunScheduleEntry"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-runs">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="deleted-run" type="SCHRunIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localSchRunScheduleFile" type="local:SchRunScheduleFile" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

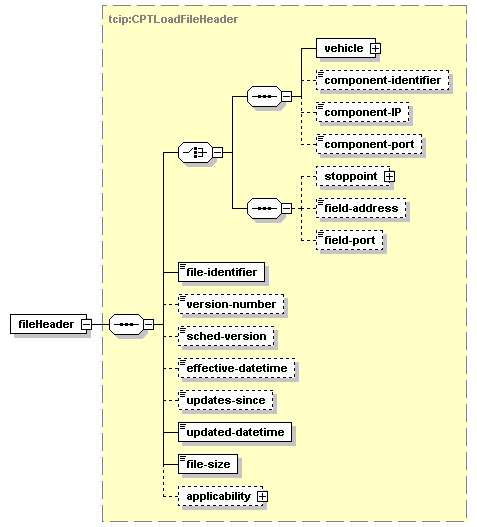

element tcip:SchRunScheduleFile/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:SchRunScheduleFile/sched-runs
diagram
properties
isRef 0
content complex
children sched-run
source <xs:element name="sched-runs">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="sched-run" type="SCHRunScheduleEntry"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

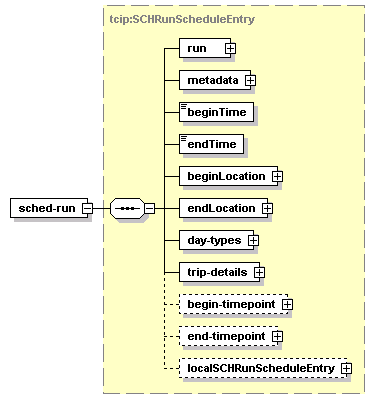

element tcip:SchRunScheduleFile/sched-runs/sched-run
diagram
type tcip:SCHRunScheduleEntry
properties
isRef 0
content complex
children run metadata beginTime endTime beginLocation endLocation day-types trip-details begin-timepoint end-timepoint localSCHRunScheduleEntry
source <xs:element name="sched-run" type="SCHRunScheduleEntry"/>

element tcip:SchRunScheduleFile/deleted-runs
diagram
properties
isRef 0
content complex
children deleted-run
source <xs:element name="deleted-runs">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="deleted-run" type="SCHRunIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:SchRunScheduleFile/deleted-runs/deleted-run
diagram
type tcip:SCHRunIden
properties
isRef 0
content complex
children run-id agency-id designator
source <xs:element name="deleted-run" type="SCHRunIden"/>

element tcip:SchRunScheduleFile/localSchRunScheduleFile
diagram
type SchRunScheduleFile
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localSchRunScheduleFile" type="local:SchRunScheduleFile" minOccurs="0"/>
