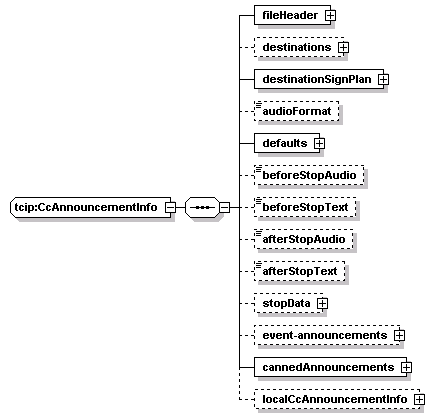

complexType tcip:CcAnnouncementInfo
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader destinations destinationSignPlan audioFormat defaults beforeStopAudio beforeStopText afterStopAudio afterStopText stopData event-announcements cannedAnnouncements localCcAnnouncementInfo
used by
element tcip:ccAnnouncementInfo
source <xs:complexType name="CcAnnouncementInfo">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="destinations" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="destination" type="CCDestinationSignMessage"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="destinationSignPlan">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="destinationSignPlan-item" type="CCDestinationSignRule"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="audioFormat" type="PI-AudioFormat" minOccurs="0"/>
    <xs:element name="defaults">
      <xs:complexType>
        <xs:choice>
          <xs:element name="distance-before" type="lrms:Distance"/>
          <xs:element name="time-before" type="CPT-Duration"/>
        </xs:choice>
      </xs:complexType>
    </xs:element>
    <xs:element name="beforeStopAudio" type="PI-BinaryAudioData" minOccurs="0"/>
    <xs:element name="beforeStopText" type="PI-DMSMessage" minOccurs="0"/>
    <xs:element name="afterStopAudio" type="PI-BinaryAudioData" minOccurs="0"/>
    <xs:element name="afterStopText" type="PI-DMSMessage" minOccurs="0"/>
    <xs:element name="stopData" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stopData-item" type="CCStopAnnunciationRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="event-announcements" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="10000">
          <xs:element name="event-announcement" type="PIEventAnnouncement"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="cannedAnnouncements">
      <xs:complexType>
        <xs:sequence maxOccurs="500">
          <xs:element name="cannedAnnouncement" type="CCCannedAnnouncementRecord"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="localCcAnnouncementInfo" type="local:CcAnnouncementInfo" minOccurs="0"/>
  </xs:sequence>
</xs:complexType>

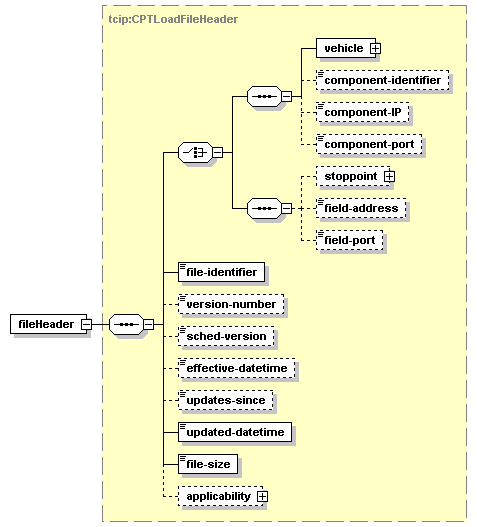

element tcip:CcAnnouncementInfo/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:CcAnnouncementInfo/destinations
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children destination
source <xs:element name="destinations" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="destination" type="CCDestinationSignMessage"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

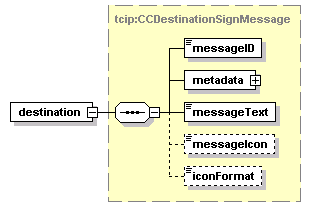

element tcip:CcAnnouncementInfo/destinations/destination
diagram
type tcip:CCDestinationSignMessage
properties
isRef 0
content complex
children messageID metadata messageText messageIcon iconFormat
source <xs:element name="destination" type="CCDestinationSignMessage"/>

element tcip:CcAnnouncementInfo/destinationSignPlan
diagram
properties
isRef 0
content complex
children destinationSignPlan-item
source <xs:element name="destinationSignPlan">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="destinationSignPlan-item" type="CCDestinationSignRule"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

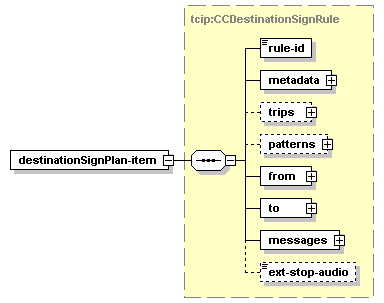

element tcip:CcAnnouncementInfo/destinationSignPlan/destinationSignPlan-item
diagram
type tcip:CCDestinationSignRule
properties
isRef 0
content complex
children rule-id metadata trips patterns from to messages ext-stop-audio
source <xs:element name="destinationSignPlan-item" type="CCDestinationSignRule"/>

element tcip:CcAnnouncementInfo/audioFormat
diagram
type tcip:PI-AudioFormat
properties
isRef 0
minOcc 0
maxOcc 1
content simple
source <xs:element name="audioFormat" type="PI-AudioFormat" minOccurs="0"/>

element tcip:CcAnnouncementInfo/defaults
diagram
properties
isRef 0
content complex
children distance-before time-before
source <xs:element name="defaults">
  <xs:complexType>
    <xs:choice>
      <xs:element name="distance-before" type="lrms:Distance"/>
      <xs:element name="time-before" type="CPT-Duration"/>
    </xs:choice>
  </xs:complexType>
</xs:element>

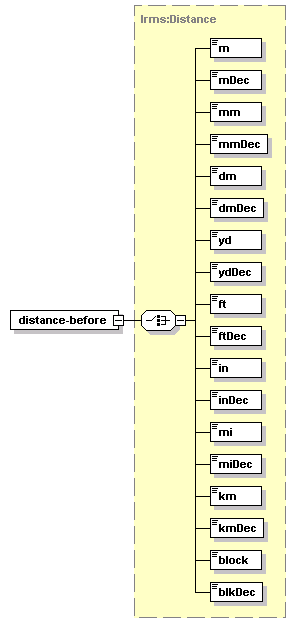

element tcip:CcAnnouncementInfo/defaults/distance-before
diagram
type lrms:Distance
properties
isRef 0
content complex
children m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source <xs:element name="distance-before" type="lrms:Distance"/>

element tcip:CcAnnouncementInfo/defaults/time-before
diagram
type tcip:CPT-Duration
properties
isRef 0
content simple
facets
minInclusive -2147483648
maxInclusive 2147483647
source <xs:element name="time-before" type="CPT-Duration"/>

element tcip:CcAnnouncementInfo/beforeStopAudio
diagram
type tcip:PI-BinaryAudioData
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxLength 2000000
source <xs:element name="beforeStopAudio" type="PI-BinaryAudioData" minOccurs="0"/>

element tcip:CcAnnouncementInfo/beforeStopText
diagram
type tcip:PI-DMSMessage
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 60
source <xs:element name="beforeStopText" type="PI-DMSMessage" minOccurs="0"/>

element tcip:CcAnnouncementInfo/afterStopAudio
diagram
type tcip:PI-BinaryAudioData
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
maxLength 2000000
source <xs:element name="afterStopAudio" type="PI-BinaryAudioData" minOccurs="0"/>

element tcip:CcAnnouncementInfo/afterStopText
diagram
type tcip:PI-DMSMessage
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 60
source <xs:element name="afterStopText" type="PI-DMSMessage" minOccurs="0"/>

element tcip:CcAnnouncementInfo/stopData
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children stopData-item
source <xs:element name="stopData" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stopData-item" type="CCStopAnnunciationRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

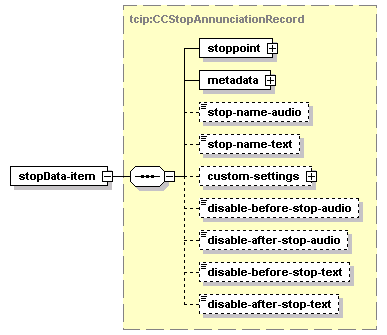

element tcip:CcAnnouncementInfo/stopData/stopData-item
diagram
type tcip:CCStopAnnunciationRecord
properties
isRef 0
content complex
children stoppoint metadata stop-name-audio stop-name-text custom-settings disable-before-stop-audio disable-after-stop-audio disable-before-stop-text disable-after-stop-text
source <xs:element name="stopData-item" type="CCStopAnnunciationRecord"/>

element tcip:CcAnnouncementInfo/event-announcements
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children event-announcement
source <xs:element name="event-announcements" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="10000">
      <xs:element name="event-announcement" type="PIEventAnnouncement"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

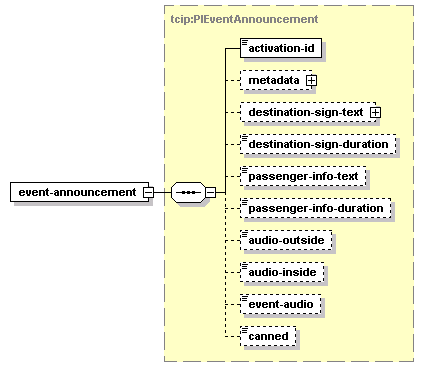

element tcip:CcAnnouncementInfo/event-announcements/event-announcement
diagram
type tcip:PIEventAnnouncement
properties
isRef 0
content complex
children activation-id metadata destination-sign-text destination-sign-duration passenger-info-text passenger-info-duration audio-outside audio-inside event-audio canned
source <xs:element name="event-announcement" type="PIEventAnnouncement"/>

element tcip:CcAnnouncementInfo/cannedAnnouncements
diagram
properties
isRef 0
content complex
children cannedAnnouncement
source <xs:element name="cannedAnnouncements">
  <xs:complexType>
    <xs:sequence maxOccurs="500">
      <xs:element name="cannedAnnouncement" type="CCCannedAnnouncementRecord"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

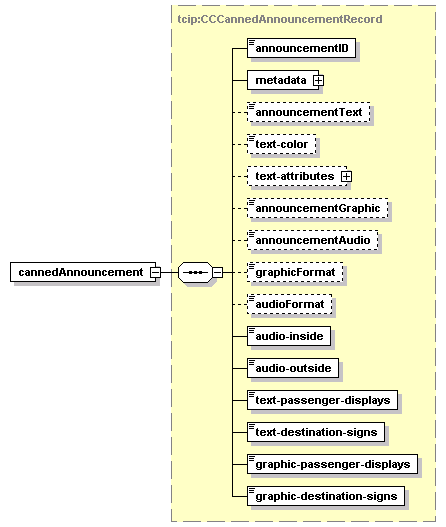

element tcip:CcAnnouncementInfo/cannedAnnouncements/cannedAnnouncement
diagram
type tcip:CCCannedAnnouncementRecord
properties
isRef 0
content complex
children announcementID metadata announcementText text-color text-attributes announcementGraphic announcementAudio graphicFormat audioFormat audio-inside audio-outside text-passenger-displays text-destination-signs graphic-passenger-displays graphic-destination-signs
source <xs:element name="cannedAnnouncement" type="CCCannedAnnouncementRecord"/>

element tcip:CcAnnouncementInfo/localCcAnnouncementInfo
diagram
type CcAnnouncementInfo
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children yourName
source <xs:element name="localCcAnnouncementInfo" type="local:CcAnnouncementInfo" minOccurs="0"/>
