complexType tcip:CCDestinationSignMessage

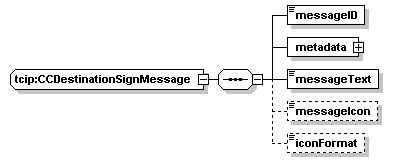

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	messageID metadata messageText messageIcon iconFormat
used by	elements  tcip:CcAnnouncementInfo/destinations/destination tcip:PIEventAnnouncement/destination-sign-text
source	<xs:complexType name="CCDestinationSignMessage">   <xs:sequence>     <xs:element name="messageID" type="CC-DestinationMessageID"/>     <xs:element name="metadata" type="CPTRowMetaData"/>     <xs:element name="messageText" type="PI-DMSMessage"/>     <xs:element name="messageIcon" type="PI-BinaryImageData" minOccurs="0"/>     <xs:element name="iconFormat" type="PI-GraphicFormat" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCDestinationSignMessage/messageID

diagram
type	tcip:CC-DestinationMessageID
properties	isRef  0 content  simple
source	<xs:element name="messageID" type="CC-DestinationMessageID"/>

element tcip:CCDestinationSignMessage/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:CCDestinationSignMessage/messageText

diagram
type	tcip:PI-DMSMessage
properties	isRef  0 content  simple
facets	minLength  1 maxLength  60
source	<xs:element name="messageText" type="PI-DMSMessage"/>

element tcip:CCDestinationSignMessage/messageIcon

diagram
type	tcip:PI-BinaryImageData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="messageIcon" type="PI-BinaryImageData" minOccurs="0"/>

element tcip:CCDestinationSignMessage/iconFormat

diagram
type	tcip:PI-GraphicFormat
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="iconFormat" type="PI-GraphicFormat" minOccurs="0"/>
