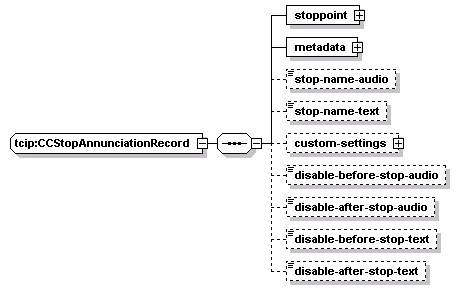

complexType tcip:CCStopAnnunciationRecord

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	stoppoint metadata stop-name-audio stop-name-text custom-settings disable-before-stop-audio disable-after-stop-audio disable-before-stop-text disable-after-stop-text
used by	element  tcip:CcAnnouncementInfo/stopData/stopData-item
source	<xs:complexType name="CCStopAnnunciationRecord">   <xs:sequence>     <xs:element name="stoppoint" type="CPTStoppointIden"/>     <xs:element name="metadata" type="CPTRowMetaData"/>     <xs:element name="stop-name-audio" type="PI-BinaryAudioData" minOccurs="0"/>     <xs:element name="stop-name-text" type="PI-PIDTakeText" minOccurs="0"/>     <xs:element name="custom-settings" minOccurs="0">       <xs:complexType>         <xs:choice>           <xs:element name="stop-distance" type="lrms:Distance"/>           <xs:element name="stop-time" type="CPT-Duration"/>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="disable-before-stop-audio" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="disable-after-stop-audio" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="disable-before-stop-text" type="CPT-Boolean" minOccurs="0"/>     <xs:element name="disable-after-stop-text" type="CPT-Boolean" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCStopAnnunciationRecord/stoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="stoppoint" type="CPTStoppointIden"/>

element tcip:CCStopAnnunciationRecord/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:CCStopAnnunciationRecord/stop-name-audio

diagram
type	tcip:PI-BinaryAudioData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="stop-name-audio" type="PI-BinaryAudioData" minOccurs="0"/>

element tcip:CCStopAnnunciationRecord/stop-name-text

diagram
type	tcip:PI-PIDTakeText
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="stop-name-text" type="PI-PIDTakeText" minOccurs="0"/>

element tcip:CCStopAnnunciationRecord/custom-settings

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stop-distance stop-time
source	<xs:element name="custom-settings" minOccurs="0">   <xs:complexType>     <xs:choice>       <xs:element name="stop-distance" type="lrms:Distance"/>       <xs:element name="stop-time" type="CPT-Duration"/>     </xs:choice>   </xs:complexType> </xs:element>

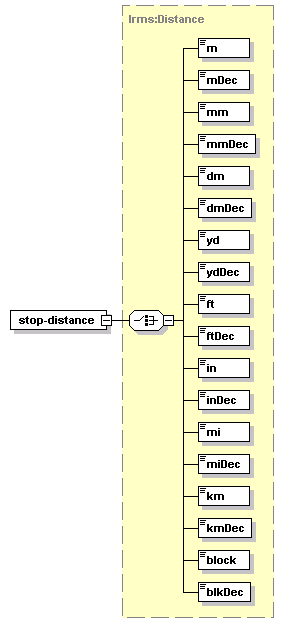

element tcip:CCStopAnnunciationRecord/custom-settings/stop-distance

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="stop-distance" type="lrms:Distance"/>

element tcip:CCStopAnnunciationRecord/custom-settings/stop-time

diagram
type	tcip:CPT-Duration
properties	isRef  0 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="stop-time" type="CPT-Duration"/>

element tcip:CCStopAnnunciationRecord/disable-before-stop-audio

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disable-before-stop-audio" type="CPT-Boolean" minOccurs="0"/>

element tcip:CCStopAnnunciationRecord/disable-after-stop-audio

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disable-after-stop-audio" type="CPT-Boolean" minOccurs="0"/>

element tcip:CCStopAnnunciationRecord/disable-before-stop-text

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disable-before-stop-text" type="CPT-Boolean" minOccurs="0"/>

element tcip:CCStopAnnunciationRecord/disable-after-stop-text

diagram
type	tcip:CPT-Boolean
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="disable-after-stop-text" type="CPT-Boolean" minOccurs="0"/>
