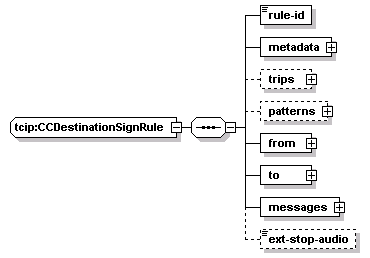

complexType tcip:CCDestinationSignRule

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	rule-id metadata trips patterns from to messages ext-stop-audio
used by	element  tcip:CcAnnouncementInfo/destinationSignPlan/destinationSignPlan-item
source	<xs:complexType name="CCDestinationSignRule">   <xs:sequence>     <xs:element name="rule-id" type="CPT-GenericCounter"/>     <xs:element name="metadata" type="CPTRowMetaData"/>     <xs:element name="trips" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="trip" type="SCHTripIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="patterns" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="1000">           <xs:element name="pattern" type="SCHPatternIden"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="from">       <xs:complexType>         <xs:choice>           <xs:element name="timpoint" type="SCHTimepointIden"/>           <xs:element name="location" type="lrms:GeoLocation"/>           <xs:element name="event" type="SCH-ActivationID"/>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="to">       <xs:complexType>         <xs:choice>           <xs:element name="timepoint" type="SCHTimepointIden"/>           <xs:element name="location" type="lrms:GeoLocation"/>           <xs:element name="event" type="SCH-ActivationID"/>         </xs:choice>       </xs:complexType>     </xs:element>     <xs:element name="messages">       <xs:complexType>         <xs:sequence maxOccurs="10">           <xs:element name="message" type="CC-DestinationMessageID"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="ext-stop-audio" type="PI-BinaryAudioData" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCDestinationSignRule/rule-id

diagram
type	tcip:CPT-GenericCounter
properties	isRef  0 content  simple
source	<xs:element name="rule-id" type="CPT-GenericCounter"/>

element tcip:CCDestinationSignRule/metadata

diagram
type	tcip:CPTRowMetaData
properties	isRef  0 content  complex
children	created effective expiration activation deactivation updated
source	<xs:element name="metadata" type="CPTRowMetaData"/>

element tcip:CCDestinationSignRule/trips

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	trip
source	<xs:element name="trips" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="trip" type="SCHTripIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCDestinationSignRule/trips/trip

diagram
type	tcip:SCHTripIden
properties	isRef  0 content  complex
children	trip-id agency-id designator
source	<xs:element name="trip" type="SCHTripIden"/>

element tcip:CCDestinationSignRule/patterns

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pattern
source	<xs:element name="patterns" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="1000">       <xs:element name="pattern" type="SCHPatternIden"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCDestinationSignRule/patterns/pattern

diagram
type	tcip:SCHPatternIden
properties	isRef  0 content  complex
children	pattern-id agency-id designator name
source	<xs:element name="pattern" type="SCHPatternIden"/>

element tcip:CCDestinationSignRule/from

diagram
properties	isRef  0 content  complex
children	timpoint location event
source	<xs:element name="from">   <xs:complexType>     <xs:choice>       <xs:element name="timpoint" type="SCHTimepointIden"/>       <xs:element name="location" type="lrms:GeoLocation"/>       <xs:element name="event" type="SCH-ActivationID"/>     </xs:choice>   </xs:complexType> </xs:element>

element tcip:CCDestinationSignRule/from/timpoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timpoint" type="SCHTimepointIden"/>

element tcip:CCDestinationSignRule/from/location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation"/>

element tcip:CCDestinationSignRule/from/event

diagram
type	tcip:SCH-ActivationID
properties	isRef  0 content  simple
source	<xs:element name="event" type="SCH-ActivationID"/>

element tcip:CCDestinationSignRule/to

diagram
properties	isRef  0 content  complex
children	timepoint location event
source	<xs:element name="to">   <xs:complexType>     <xs:choice>       <xs:element name="timepoint" type="SCHTimepointIden"/>       <xs:element name="location" type="lrms:GeoLocation"/>       <xs:element name="event" type="SCH-ActivationID"/>     </xs:choice>   </xs:complexType> </xs:element>

element tcip:CCDestinationSignRule/to/timepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="timepoint" type="SCHTimepointIden"/>

element tcip:CCDestinationSignRule/to/location

diagram
type	lrms:GeoLocation
properties	isRef  0 content  complex
children	latitude longitude horizontalDatum height
source	<xs:element name="location" type="lrms:GeoLocation"/>

element tcip:CCDestinationSignRule/to/event

diagram
type	tcip:SCH-ActivationID
properties	isRef  0 content  simple
source	<xs:element name="event" type="SCH-ActivationID"/>

element tcip:CCDestinationSignRule/messages

diagram
properties	isRef  0 content  complex
children	message
source	<xs:element name="messages">   <xs:complexType>     <xs:sequence maxOccurs="10">       <xs:element name="message" type="CC-DestinationMessageID"/>     </xs:sequence>   </xs:complexType> </xs:element>

element tcip:CCDestinationSignRule/messages/message

diagram
type	tcip:CC-DestinationMessageID
properties	isRef  0 content  simple
source	<xs:element name="message" type="CC-DestinationMessageID"/>

element tcip:CCDestinationSignRule/ext-stop-audio

diagram
type	tcip:PI-BinaryAudioData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  2000000
source	<xs:element name="ext-stop-audio" type="PI-BinaryAudioData" minOccurs="0"/>
