complexType tcip:SCHPatternIden

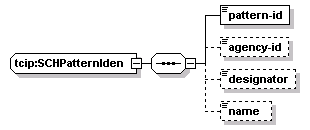

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	pattern-id agency-id designator name
used by	elements  tcip:SCHValidationError/affected-patterns/affected-pattern tcip:CCPollResponseContents/currentPattern tcip:SchPushRouteSchedule/defaultAPattern tcip:SchRouteSchedule/defaultAPattern tcip:SCHPTVRouteScheduleEntry/defaultAPattern tcip:SCHPTVRouteScheduleEntry/defaultBPattern tcip:SchPushRouteSchedule/defaultBPattern tcip:SchRouteSchedule/defaultBPattern tcip:SchPatternFile/deleted-patterns/deleted-pattern tcip:SchPatternList/deleted-patterns/deleted-pattern tcip:SchPushPatterns/deleted-patterns/deleted-pattern tcip:SCHTripInfo/pattern tcip:SCHRunningTimeEntry/pattern tcip:SCHPatternInfo/pattern tcip:CCPTVTripData/patterns/pattern tcip:CCDestinationSignRule/patterns/pattern tcip:SpRouteGeoTraceSub/query/pattern tcip:SpRouteGeoTrace/query/pattern tcip:SchRunningTimeListSub/patterns/pattern tcip:SchRunningTimeList/patterns/pattern tcip:SchActualRunningTimesSub/patterns/pattern tcip:SchActualRunningTimes/patterns/pattern tcip:CcAdherencePerformanceSub/patterns/pattern tcip:CcAdherencePerformance/patterns/pattern
source	<xs:complexType name="SCHPatternIden">   <xs:sequence>     <xs:element name="pattern-id" type="SCH-PatternID"/>     <xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>     <xs:element name="designator" type="SCH-PatternDesignator" minOccurs="0"/>     <xs:element name="name" type="SCH-PatternName" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:SCHPatternIden/pattern-id

diagram
type	tcip:SCH-PatternID
properties	isRef  0 content  simple
source	<xs:element name="pattern-id" type="SCH-PatternID"/>

element tcip:SCHPatternIden/agency-id

diagram
type	tcip:CPT-AgencyID
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="agency-id" type="CPT-AgencyID" minOccurs="0"/>

element tcip:SCHPatternIden/designator

diagram
type	tcip:SCH-PatternDesignator
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  8
source	<xs:element name="designator" type="SCH-PatternDesignator" minOccurs="0"/>

element tcip:SCHPatternIden/name

diagram
type	tcip:SCH-PatternName
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  20
source	<xs:element name="name" type="SCH-PatternName" minOccurs="0"/>
