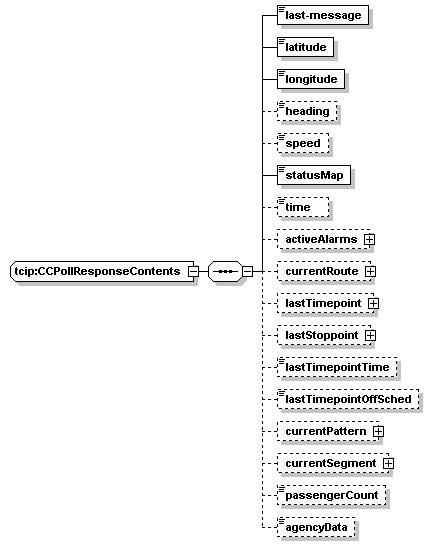

complexType tcip:CCPollResponseContents

diagram
namespace	http://www.TCIP-Adopted-03-00-01
children	last-message latitude longitude heading speed statusMap time activeAlarms currentRoute lastTimepoint lastStoppoint lastTimepointTime lastTimepointOffSched currentPattern currentSegment passengerCount agencyData
used by	element  tcip:CcPollResults/ptv-info
source	<xs:complexType name="CCPollResponseContents">   <xs:sequence>     <xs:element name="last-message" type="CC-MsgCounter"/>     <xs:element name="latitude" type="lrms:Latitude"/>     <xs:element name="longitude" type="lrms:Longitude"/>     <xs:element name="heading" type="SP-AngularDirection" minOccurs="0"/>     <xs:element name="speed" type="OB-J1587-VelocityVectorSpeed" minOccurs="0"/>     <xs:element name="statusMap" type="CC-PollResponseStatus"/>     <xs:element name="time" type="CPT-DateTime" minOccurs="0"/>     <xs:element name="activeAlarms" minOccurs="0">       <xs:complexType>         <xs:sequence maxOccurs="4">           <xs:element name="activeAlarm" type="CCAlarm"/>         </xs:sequence>       </xs:complexType>     </xs:element>     <xs:element name="currentRoute" type="SCHRouteIden" minOccurs="0"/>     <xs:element name="lastTimepoint" type="SCHTimepointIden" minOccurs="0"/>     <xs:element name="lastStoppoint" type="CPTStoppointIden" minOccurs="0"/>     <xs:element name="lastTimepointTime" type="SCH-Time" minOccurs="0"/>     <xs:element name="lastTimepointOffSched" type="CPT-Duration" minOccurs="0"/>     <xs:element name="currentPattern" type="SCHPatternIden" minOccurs="0"/>     <xs:element name="currentSegment" type="SCHPatternSegmentIden" minOccurs="0"/>     <xs:element name="passengerCount" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>     <xs:element name="agencyData" type="CC-AgencyData" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element tcip:CCPollResponseContents/last-message

diagram
type	tcip:CC-MsgCounter
properties	isRef  0 content  simple
source	<xs:element name="last-message" type="CC-MsgCounter"/>

element tcip:CCPollResponseContents/latitude

diagram
type	lrms:Latitude
properties	isRef  0 content  simple
facets	minInclusive  -90000000 maxInclusive  +90000000
source	<xs:element name="latitude" type="lrms:Latitude"/>

element tcip:CCPollResponseContents/longitude

diagram
type	lrms:Longitude
properties	isRef  0 content  simple
facets	minInclusive  -180000000 maxInclusive  +180000000
source	<xs:element name="longitude" type="lrms:Longitude"/>

element tcip:CCPollResponseContents/heading

diagram
type	tcip:SP-AngularDirection
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="heading" type="SP-AngularDirection" minOccurs="0"/>

element tcip:CCPollResponseContents/speed

diagram
type	tcip:OB-J1587-VelocityVectorSpeed
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="speed" type="OB-J1587-VelocityVectorSpeed" minOccurs="0"/>

element tcip:CCPollResponseContents/statusMap

diagram
type	tcip:CC-PollResponseStatus
properties	isRef  0 content  simple
source	<xs:element name="statusMap" type="CC-PollResponseStatus"/>

element tcip:CCPollResponseContents/time

diagram
type	tcip:CPT-DateTime
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="time" type="CPT-DateTime" minOccurs="0"/>

element tcip:CCPollResponseContents/activeAlarms

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	activeAlarm
source	<xs:element name="activeAlarms" minOccurs="0">   <xs:complexType>     <xs:sequence maxOccurs="4">       <xs:element name="activeAlarm" type="CCAlarm"/>     </xs:sequence>   </xs:complexType> </xs:element>

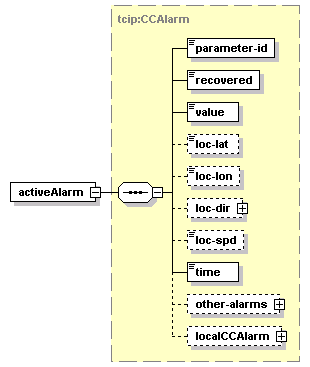

element tcip:CCPollResponseContents/activeAlarms/activeAlarm

diagram
type	tcip:CCAlarm
properties	isRef  0 content  complex
children	parameter-id recovered value loc-lat loc-lon loc-dir loc-spd time other-alarms localCCAlarm
source	<xs:element name="activeAlarm" type="CCAlarm"/>

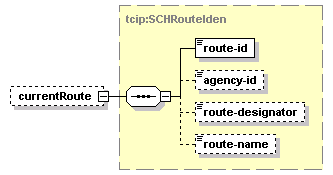

element tcip:CCPollResponseContents/currentRoute

diagram
type	tcip:SCHRouteIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	route-id agency-id route-designator route-name
source	<xs:element name="currentRoute" type="SCHRouteIden" minOccurs="0"/>

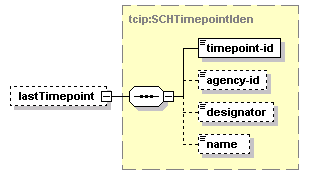

element tcip:CCPollResponseContents/lastTimepoint

diagram
type	tcip:SCHTimepointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	timepoint-id agency-id designator name
source	<xs:element name="lastTimepoint" type="SCHTimepointIden" minOccurs="0"/>

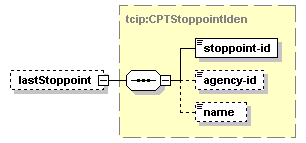

element tcip:CCPollResponseContents/lastStoppoint

diagram
type	tcip:CPTStoppointIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	stoppoint-id agency-id name
source	<xs:element name="lastStoppoint" type="CPTStoppointIden" minOccurs="0"/>

element tcip:CCPollResponseContents/lastTimepointTime

diagram
type	tcip:SCH-Time
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="lastTimepointTime" type="SCH-Time" minOccurs="0"/>

element tcip:CCPollResponseContents/lastTimepointOffSched

diagram
type	tcip:CPT-Duration
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  -2147483648 maxInclusive  2147483647
source	<xs:element name="lastTimepointOffSched" type="CPT-Duration" minOccurs="0"/>

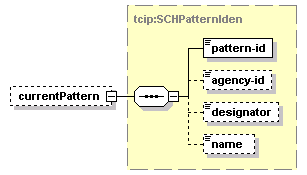

element tcip:CCPollResponseContents/currentPattern

diagram
type	tcip:SCHPatternIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	pattern-id agency-id designator name
source	<xs:element name="currentPattern" type="SCHPatternIden" minOccurs="0"/>

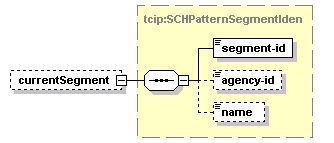

element tcip:CCPollResponseContents/currentSegment

diagram
type	tcip:SCHPatternSegmentIden
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	segment-id agency-id name
source	<xs:element name="currentSegment" type="SCHPatternSegmentIden" minOccurs="0"/>

element tcip:CCPollResponseContents/passengerCount

diagram
type	tcip:OB-J1587-PassengerCounterPatronCount
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="passengerCount" type="OB-J1587-PassengerCounterPatronCount" minOccurs="0"/>

element tcip:CCPollResponseContents/agencyData

diagram
type	tcip:CC-AgencyData
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	maxLength  16
source	<xs:element name="agencyData" type="CC-AgencyData" minOccurs="0"/>
