| element | tcip:ccPollResults |
<xs:sequence>
<xs:element name="vehicle" type="CPTVehicleIden"/>
<xs:element name="date-time" type="CPT-DateTime"/>
<xs:element name="ptv-info" type="CCPollResponseContents"/>
</xs:sequence>
</xs:complexType>
| diagram | |
||
| namespace | http://www.TCIP-Adopted-03-00-01 | ||
| children | vehicle date-time ptv-info | ||
| used by |
|
||
| source | <xs:complexType name="CcPollResults"> <xs:sequence> <xs:element name="vehicle" type="CPTVehicleIden"/> <xs:element name="date-time" type="CPT-DateTime"/> <xs:element name="ptv-info" type="CCPollResponseContents"/> </xs:sequence> </xs:complexType> |
| diagram |  |
||||
| type | tcip:CPTVehicleIden | ||||
| properties |
|
||||
| children | vehicle-id agency-id vin | ||||
| source | <xs:element name="vehicle" type="CPTVehicleIden"/> |
| diagram |  |
||||
| type | tcip:CPT-DateTime | ||||
| properties |
|
||||
| source | <xs:element name="date-time" type="CPT-DateTime"/> |

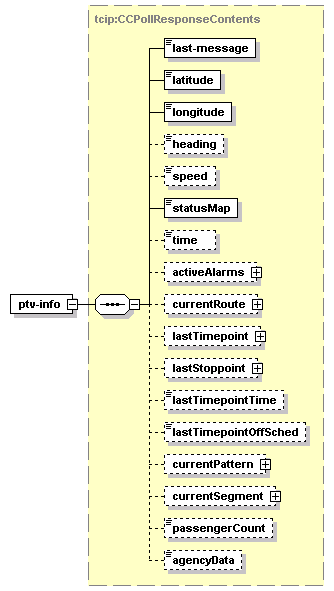

| diagram |  |
||||
| type | tcip:CCPollResponseContents | ||||
| properties |
|
||||
| children | last-message latitude longitude heading speed statusMap time activeAlarms currentRoute lastTimepoint lastStoppoint lastTimepointTime lastTimepointOffSched currentPattern currentSegment passengerCount agencyData | ||||
| source | <xs:element name="ptv-info" type="CCPollResponseContents"/> |
