complexType tcip:CptCurrentVersionNotice
diagram
namespace http://www.TCIP-Adopted-03-00-01
children current-files files-to-delete
used by
element tcip:cptCurrentVersionNotice
source <xs:complexType name="CptCurrentVersionNotice">
  <xs:sequence>
    <xs:element name="current-files">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="current-file" type="CPTLoadFileHeader"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="files-to-delete">
      <xs:complexType>
        <xs:sequence maxOccurs="100">
          <xs:element name="files-to-delete-item" type="CPTLoadFileHeader"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

element tcip:CptCurrentVersionNotice/current-files
diagram
properties
isRef 0
content complex
children current-file
source <xs:element name="current-files">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="current-file" type="CPTLoadFileHeader"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

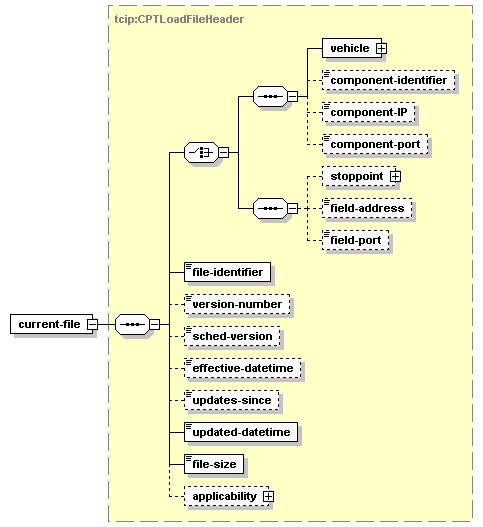

element tcip:CptCurrentVersionNotice/current-files/current-file
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="current-file" type="CPTLoadFileHeader"/>

element tcip:CptCurrentVersionNotice/files-to-delete
diagram
properties
isRef 0
content complex
children files-to-delete-item
source <xs:element name="files-to-delete">
  <xs:complexType>
    <xs:sequence maxOccurs="100">
      <xs:element name="files-to-delete-item" type="CPTLoadFileHeader"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

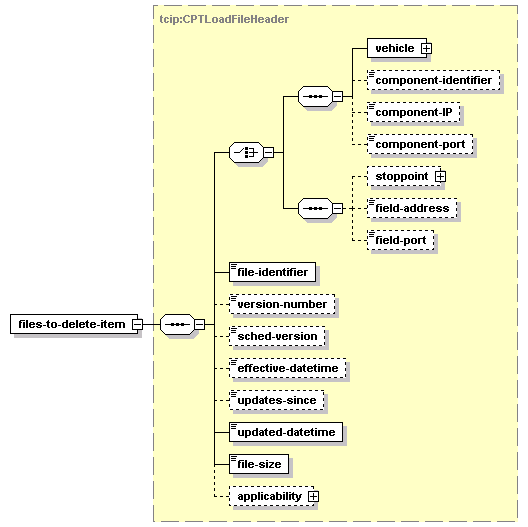

element tcip:CptCurrentVersionNotice/files-to-delete/files-to-delete-item
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="files-to-delete-item" type="CPTLoadFileHeader"/>
