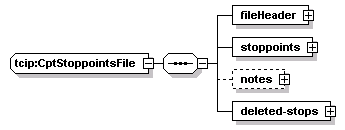

complexType tcip:CptStoppointsFile
diagram
namespace http://www.TCIP-Adopted-03-00-01
children fileHeader stoppoints notes deleted-stops
used by
element tcip:cptStoppointsFile
source <xs:complexType name="CptStoppointsFile">
  <xs:sequence>
    <xs:element name="fileHeader" type="CPTLoadFileHeader"/>
    <xs:element name="stoppoints">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="stoppoint" type="CPTStoppoint"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="notes" minOccurs="0">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="note" type="SCHNoteInfo"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
    <xs:element name="deleted-stops">
      <xs:complexType>
        <xs:sequence maxOccurs="25000">
          <xs:element name="deleted-stop" type="CPTStoppointIden"/>
        </xs:sequence>
      </xs:complexType>
    </xs:element>
  </xs:sequence>
</xs:complexType>

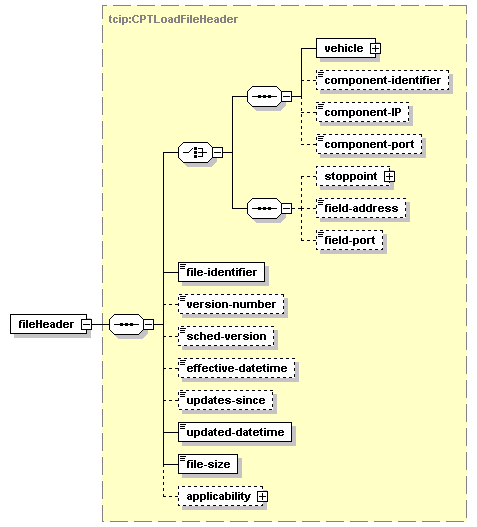

element tcip:CptStoppointsFile/fileHeader
diagram
type tcip:CPTLoadFileHeader
properties
isRef 0
content complex
children vehicle component-identifier component-IP component-port stoppoint field-address field-port file-identifier version-number sched-version effective-datetime updates-since updated-datetime file-size applicability
source <xs:element name="fileHeader" type="CPTLoadFileHeader"/>

element tcip:CptStoppointsFile/stoppoints
diagram
properties
isRef 0
content complex
children stoppoint
source <xs:element name="stoppoints">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="stoppoint" type="CPTStoppoint"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

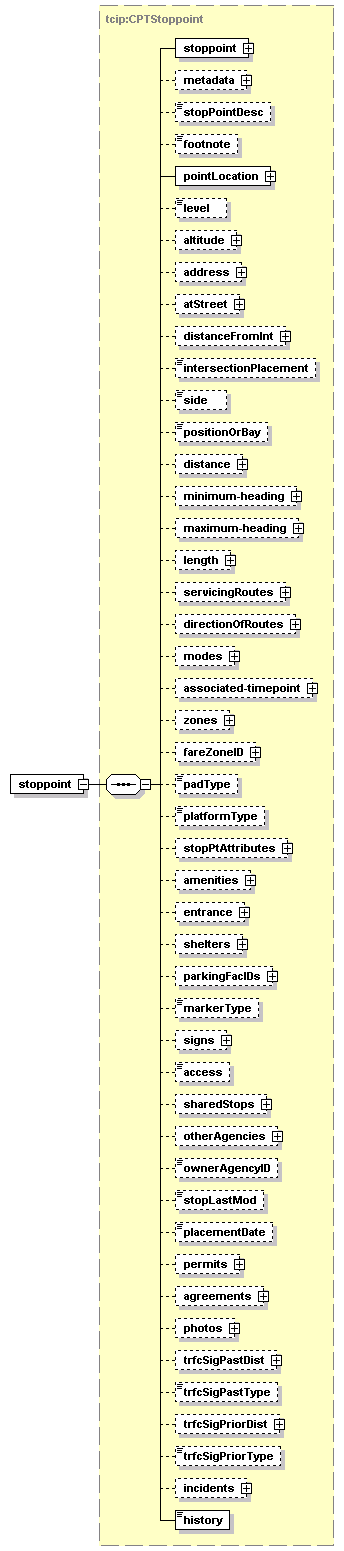

element tcip:CptStoppointsFile/stoppoints/stoppoint
diagram
type tcip:CPTStoppoint
properties
isRef 0
content complex
children stoppoint metadata stopPointDesc footnote pointLocation level altitude address atStreet distanceFromInt intersectionPlacement side positionOrBay distance minimum-heading maximum-heading length servicingRoutes directionOfRoutes modes associated-timepoint zones fareZoneID padType platformType stopPtAttributes amenities entrance shelters parkingFacIDs markerType signs access sharedStops otherAgencies ownerAgencyID stopLastMod placementDate permits agreements photos trfcSigPastDist trfcSigPastType trfcSigPriorDist trfcSigPriorType incidents history
source <xs:element name="stoppoint" type="CPTStoppoint"/>

element tcip:CptStoppointsFile/notes
diagram
properties
isRef 0
minOcc 0
maxOcc 1
content complex
children note
source <xs:element name="notes" minOccurs="0">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="note" type="SCHNoteInfo"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

element tcip:CptStoppointsFile/notes/note
diagram
type tcip:SCHNoteInfo
properties
isRef 0
content complex
children note metadata public note-text localSCHNoteInfo
source <xs:element name="note" type="SCHNoteInfo"/>

element tcip:CptStoppointsFile/deleted-stops
diagram
properties
isRef 0
content complex
children deleted-stop
source <xs:element name="deleted-stops">
  <xs:complexType>
    <xs:sequence maxOccurs="25000">
      <xs:element name="deleted-stop" type="CPTStoppointIden"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

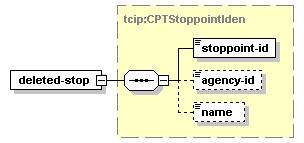

element tcip:CptStoppointsFile/deleted-stops/deleted-stop
diagram
type tcip:CPTStoppointIden
properties
isRef 0
content complex
children stoppoint-id agency-id name
source <xs:element name="deleted-stop" type="CPTStoppointIden"/>
