Documentation for ATIS-Draft-03-00-79

Element: schRunningTimeList

[Table of contents]

Name schRunningTimeList
Type SchRunningTimeList
Nillable no
Abstract no

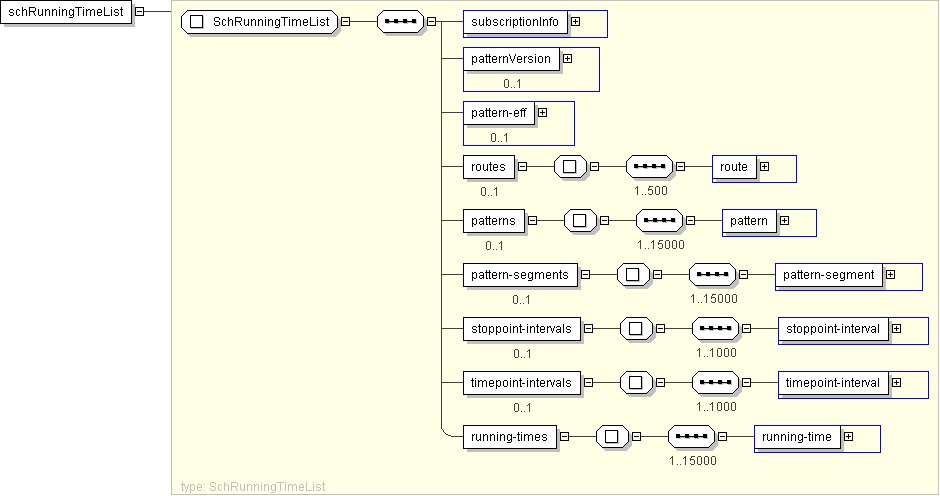

Logical Diagram
h-841091506 h-1124933139 h-1783384890 h-1310295008 h-1666760116 h-1519081439 h-1970229835
XML Instance Representation
<schRunningTimeList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<patternVersion> SCH-TimetableVersionID </patternVersion> [0..1]
<pattern-eff> CPT-DateTime </pattern-eff> [0..1]
<routes> [0..1]
Start Sequence [1..500]
<route> SCHRouteIden </route> [1]
End Sequence
</routes>
<patterns> [0..1]
Start Sequence [1..15000]
<pattern> SCHPatternIden </pattern> [1]
End Sequence
</patterns>
<pattern-segments> [0..1]
Start Sequence [1..15000]
<pattern-segment> SCHPatternSegmentIden </pattern-segment> [1]
End Sequence
</pattern-segments>
<stoppoint-intervals> [0..1]
Start Sequence [1..1000]
<stoppoint-interval> SCHStoppointPair </stoppoint-interval> [1]
End Sequence
</stoppoint-intervals>
<timepoint-intervals> [0..1]
Start Sequence [1..1000]
<timepoint-interval> SCHTimepointInterval </timepoint-interval> [1]
End Sequence
</timepoint-intervals>
<running-times> [1]
Start Sequence [1..15000]
<running-time> SCHRunningTimeEntry </running-time> [1]
End Sequence
</running-times>
</schRunningTimeList>

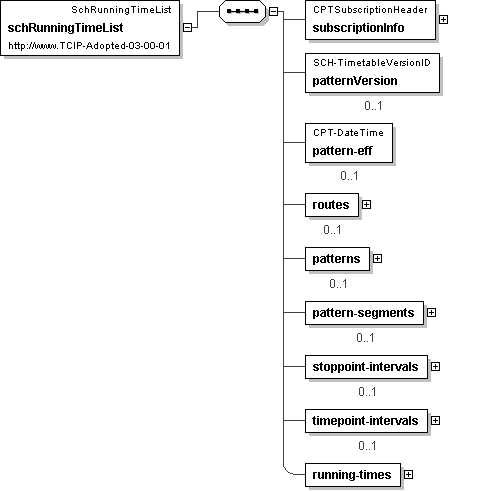

Diagram
h-527207252 h-337950068 h1272267302 h-963684166 h-1937713343 h122395130 h1921798165 h-687893611 h-1715839431
Schema Component Representation
<xs:element name="schRunningTimeList" type=" SchRunningTimeList "/>
