Documentation for ATIS-Draft-03-00-79

Element: spGISPush

[Table of contents]

Name spGISPush
Type SpGISPush
Nillable no
Abstract no

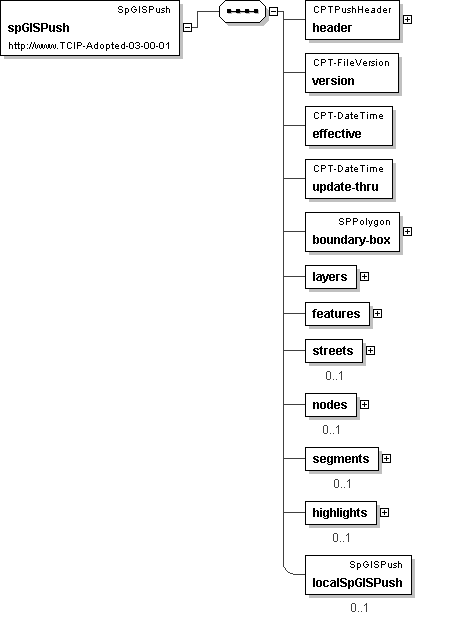

Logical Diagram
h-1421071056 h-953402869 h-1309532187 h974918176 h514243213 h-594188370 h-1973521021 h1101482850
XML Instance Representation
<spGISPush>
<header> CPTPushHeader </header> [1]
<version> CPT-FileVersion </version> [1]
<effective> CPT-DateTime </effective> [1]
<update-thru> CPT-DateTime </update-thru> [1]
<boundary-box> SPPolygon </boundary-box> [1]
<layers> [1]
Start Sequence [1..200]
<layer> SPGISLayer </layer> [1]
End Sequence
</layers>
<features> [1]
Start Sequence [1..200000]
<feature> SPFeature </feature> [1]
End Sequence
</features>
<streets> [0..1]
Start Sequence [1..10000]
<street> lrms:StreetInfo </street> [1]
End Sequence
</streets>
<nodes> [0..1]
Start Sequence [1..100000]
<node> lrms:NodeAttribute </node> [1]
End Sequence
</nodes>
<segments> [0..1]
Start Sequence [1..1000000]
<segment> SPStreetSeg </segment> [1]
End Sequence
</segments>
<highlights> [0..1]
Start Sequence [1..100000]
<highlight> CPTGenericIden </highlight> [1]
End Sequence
</highlights>
<localSpGISPush> local:SpGISPush </localSpGISPush> [0..1]
</spGISPush>

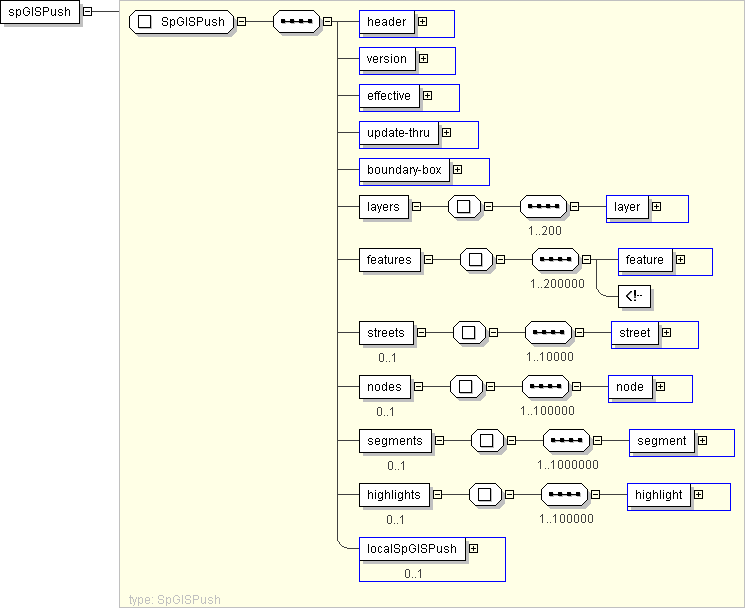

Diagram
h-1737467159 h1398126929 h1272267302 h1272267302 h-1414121128 h483636130 h-1995809004 h1398024598 h730866261 h1986700784 h-1935084263 h-1988567415
Schema Component Representation
<xs:element name="spGISPush" type=" SpGISPush "/>
