Documentation for ATIS-Draft-03-00-79

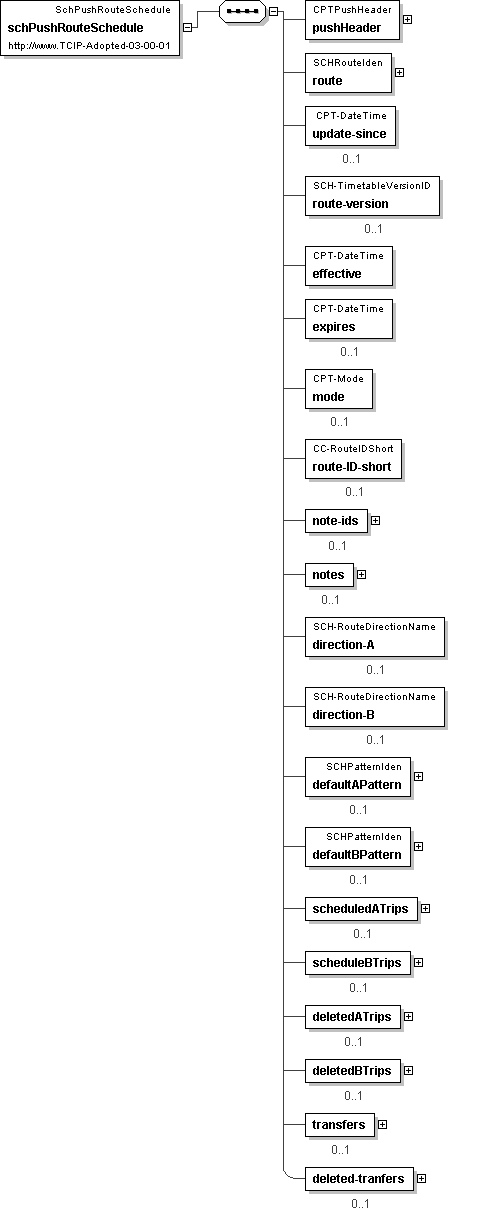

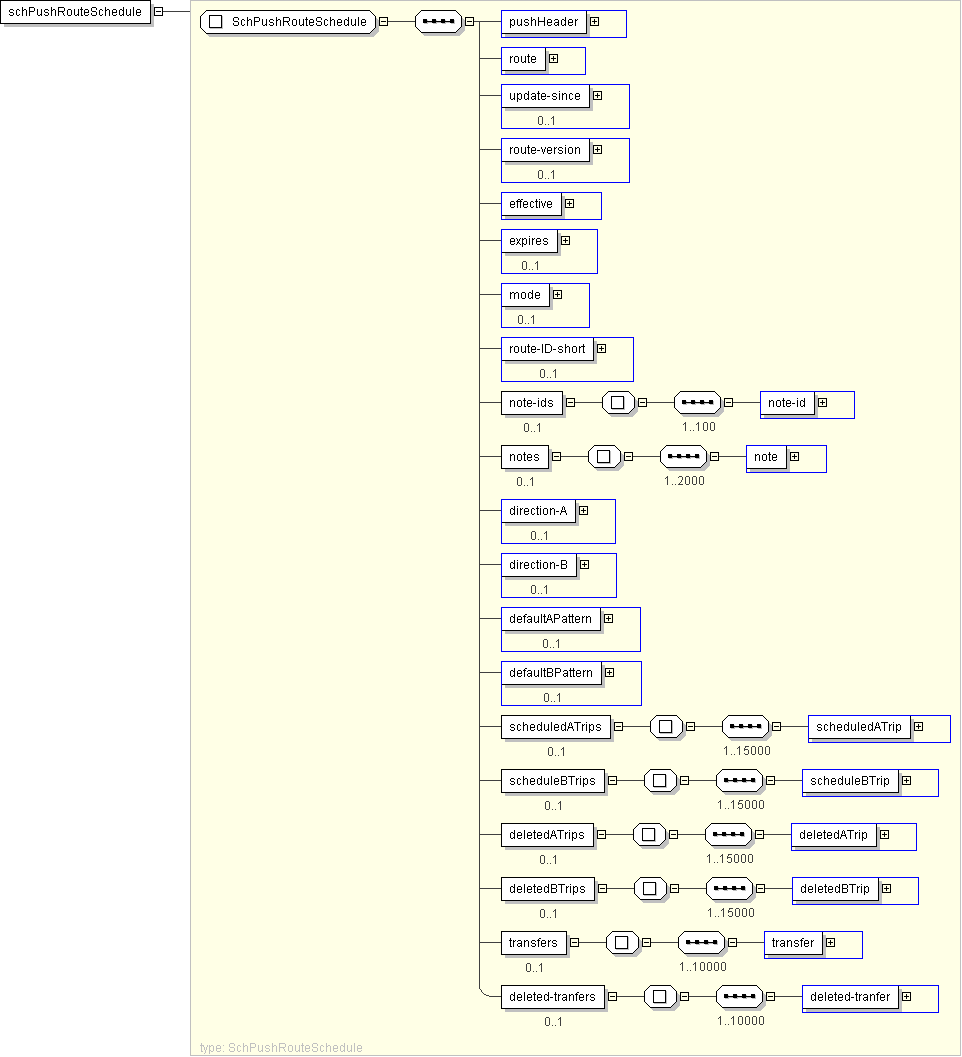

XML Instance Representation

<pushHeader> CPTPushHeader </pushHeader> [1]

<route> SCHRouteIden </route> [1]

<update-since> CPT-DateTime </update-since> [0..1]

<route-version> SCH-TimetableVersionID </route-version> [0..1]

<effective> CPT-DateTime </effective> [1]

<expires> CPT-DateTime </expires> [0..1]

<mode> CPT-Mode </mode> [0..1]

<route-ID-short> CC-RouteIDShort </route-ID-short> [0..1]

<note-ids> [0..1]
Start Sequence [1..100]

<note-id> SCHNoteIden </note-id> [1]

End Sequence
</note-ids>

<notes> [0..1]
Start Sequence [1..2000]

<note> SCHNoteInfo </note> [1]

End Sequence
</notes>

<direction-A> SCH-RouteDirectionName </direction-A> [0..1]

<direction-B> SCH-RouteDirectionName </direction-B> [0..1]

<defaultAPattern> SCHPatternIden </defaultAPattern> [0..1]

<defaultBPattern> SCHPatternIden </defaultBPattern> [0..1]

<scheduledATrips> [0..1]
Start Sequence [1..15000]

<scheduledATrip> SCHTripInfo </scheduledATrip> [1]

End Sequence
</scheduledATrips>

<scheduleBTrips> [0..1]
Start Sequence [1..15000]

<scheduleBTrip> SCHTripInfo </scheduleBTrip> [1]

End Sequence
</scheduleBTrips>

<deletedATrips> [0..1]
Start Sequence [1..15000]

<deletedATrip> SCHTripIden </deletedATrip> [1]

End Sequence
</deletedATrips>

<deletedBTrips> [0..1]
Start Sequence [1..15000]

<deletedBTrip> SCHTripIden </deletedBTrip> [1]

End Sequence
</deletedBTrips>

<transfers> [0..1]
Start Sequence [1..10000]

<transfer> SCHTransferInfo </transfer> [1]

End Sequence
</transfers>

<deleted-tranfers> [0..1]
Start Sequence [1..10000]

<deleted-tranfer> SCH-TransferID </deleted-tranfer> [1]

End Sequence
</deleted-tranfers>

</schPushRouteSchedule>
