Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	StatusBlock
Used by (from the same schema document)	Complex Type AdvisoryInformation , Complex Type InformationResponse
Abstract	no

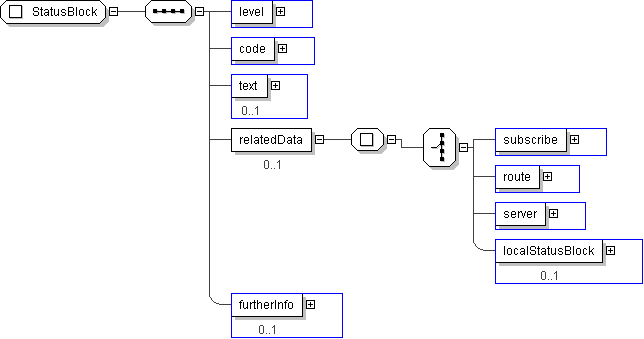

XML Instance Representation

<...>

<level> Error-NotificationLevel </level> [1]

<code> Error-NotificationCode </code> [1]

<text> itis:ITIScodesAndText </text> [0..1]

<relatedData> [0..1]
Start Choice [1]

<subscribe> RequestStatus </subscribe> [1]

<route> RouteStatus </route> [1]

<server> ServerStatus </server> [1]

<localStatusBlock> local:StatusBlock </localStatusBlock> [0..1]

End Choice
</relatedData>

<furtherInfo> URL-Link </furtherInfo> [0..1]

</...>

Schema Component Representation

<xs:complexType name="StatusBlock">

<xs:sequence>

<xs:element name="level" type=" Error-NotificationLevel "/>

<xs:element name="code" type=" Error-NotificationCode "/>

<xs:element name="text" type=" itis:ITIScodesAndText " minOccurs="0"/>

<xs:element name="relatedData" minOccurs="0">

<xs:complexType>

<xs:choice>

<xs:element name="subscribe" type=" RequestStatus "/>

<xs:element name="route" type=" RouteStatus "/>

<xs:element name="server" type=" ServerStatus "/>

<xs:element name="localStatusBlock" type=" local:StatusBlock " minOccurs="0"/>

</xs:choice>

</xs:complexType>

</xs:element>

<xs:element name="furtherInfo" type=" URL-Link " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
