Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

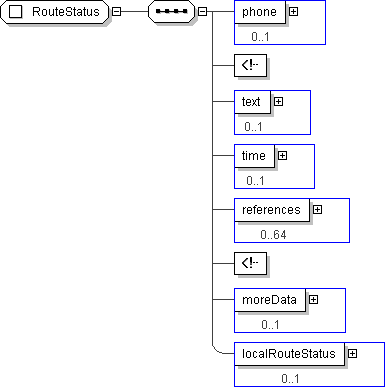

Name	RouteStatus
Used by (from the same schema document)	Complex Type StatusBlock
Abstract	no

XML Instance Representation

<...>

<phone> PhoneInformation </phone> [0..1]

<text> itis:ITIScodesAndText </text> [0..1]

<time> DateTimePair </time> [0..1]

<references> im:ReferenceID </references> [0..64]

<moreData> URL-Link </moreData> [0..1]

<localRouteStatus> local:RouteStatus </localRouteStatus> [0..1]

</...>

Schema Component Representation

<xs:complexType name="RouteStatus">

<xs:sequence>

<xs:element name="phone" type=" PhoneInformation " minOccurs="0"/>

<-- a number to use for further information -->

<xs:element name="text" type=" itis:ITIScodesAndText " minOccurs="0"/>

<xs:element name="time" type=" DateTimePair " minOccurs="0"/>

<xs:element name="references" type=" im:ReferenceID " minOccurs="0" maxOccurs="64"/>

<-- the Reference numbers for related messages -->

<xs:element name="moreData" type=" URL-Link " minOccurs="0"/>

<xs:element name="localRouteStatus" type=" local:RouteStatus " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
