Documentation for ATIS-Draft-03-00-79

Simple Type: Error-NotificationCode

[Table of contents]

Super-types: None
Sub-types: None
Name Error-NotificationCode
Used by (from the same schema document) Complex Type StatusBlock
Content
  • Union of following types:
    • Locally defined type:
      • Base XSD Type: unsignedInt
      • 0 <= value <= 784
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'noMessagesToReport'|'tripGuidanceNotification'|'maydayNotification'|'parkingNotification'|'directoryServicesNotification'|'userSettingsNotification'|'travelerInformationNotification'|'generalNotification'|'ispServices'|'officialNotification'|'contraintsCannotBeMet'|'unknownLocalization'|'unknownCode'|'invalidIdentity'|'serviceUnavailable'|'informationUnavailable'|'informationRestricted'|'locationReferenceError'|'locationReferenceAmbiguous'|'locationReferenceNotSupported'|'locationReferenceTranslated'|'filterError'|'filterAgencyUnknown'|'filterTypeNotSupported'|'filterTypeUnknown'|'filterSubTypeUnknown'|'filterExtensionUnknown'|'filterDurationTooLong'|'filterIntervalTooShort'|'filterIntervalSetToDefault'|'filterTimeNotSupported'|'filterComplexTimeNotSupported'|'filterTimesTooComplex'|'requestAccepted'|'generalRouteWarning'|'invalidFormatForRequest'|'systemCurrentlyNotFunctional'|'furtherInformationByPhone'|'furtherInformationByWeb'|'partialRoutesReturned'|'missingData'|'noRoutesFound'|'restrictionedLinks'|'locationNotServedByTransit'|'couldNotIdentifyLocation'|'reservationsRequiredForTransit'|'transitTransferTimeVeryLong'|'transitTransferTimeVeryShort'|'congestionOrDelayPredicted'|'badWeatherPredicted'}
    • Locally defined type:
      • Base XSD Type: string
      • value comes from list: {'insert-local-values-here'}
Documentation values to 127 reserved for std use values 128 to 255 reserved for local use
Application Data noMessagesToReport (0) -- used for perodic check-in events tripGuidanceNotification (1) maydayNotification (2) parkingNotification (3) directoryServicesNotification (4) userSettingsNotification (5) travelerInformationNotification (6) generalNotification (7) ispServices (8) officialNotification (9) contraintsCannotBeMet (64) unknownLocalization (65) unknownCode (66) invalidIdentity (67) serviceUnavailable (68) informationUnavailable (69) informationRestricted (70) locationReferenceError (256) -- LRMS error (values 256 to 511) locationReferenceAmbiguous (257) locationReferenceNotSupported (258) locationReferenceTranslated (259) -- the request profile was translated -- to another profile filterError (512) -- filter error (values 512 to 767 are -- filter related) filterAgencyUnknown (513) -- a filter by agnency contsins an unknown -- agency name filterTypeNotSupported (514) -- filtering on the Basic type specified -- is not supported filterTypeUnknown (515) -- the Basic filter type specified was unknown filterSubTypeUnknown (516) -- the Basic filter SUB type specified -- was unknown filterExtensionUnknown (517) -- mis match between the local entensions -- which are supported filterDurationTooLong (518) -- the provided future time is beyond -- that supported filterIntervalTooShort (519) -- the rate of requested updates is -- too frequent for the data supplier filterIntervalSetToDefault (520) -- the update rate has been set to the -- rate suported by the ISPs defaut filterTimeNotSupported (521) -- filter by time is not supported filterComplexTimeNotSupported (522) -- filtering by complex time sets is -- not supported filterTimesTooComplex (523) -- complex time intevals was too complex -- to handle requestAccepted (768) -- request okay (no errors) generalRouteWarning (769) invalidFormatForRequest (770) systemCurrentlyNotFunctional (771) furtherInformationByPhone (772) -- status block has phone number furtherInformationByWeb (773) -- further data element has link partialRoutesReturned (774) -- the routes returned matching criteria -- will be in the status blocl missingData (775) -- Unable to retrieve all or part of -- requested route from route provider noRoutesFound (776) -- No Routes Found matching your constraints restrictionedLinks (777) -- There are some restrictions on the -- selected links ewhich will be reported locationNotServedByTransit (778) couldNotIdentifyLocation (779) reservationsRequiredForTransit (780) transitTransferTimeVeryLong (781) transitTransferTimeVeryShort (782) congestionOrDelayPredicted (783) badWeatherPredicted (784)

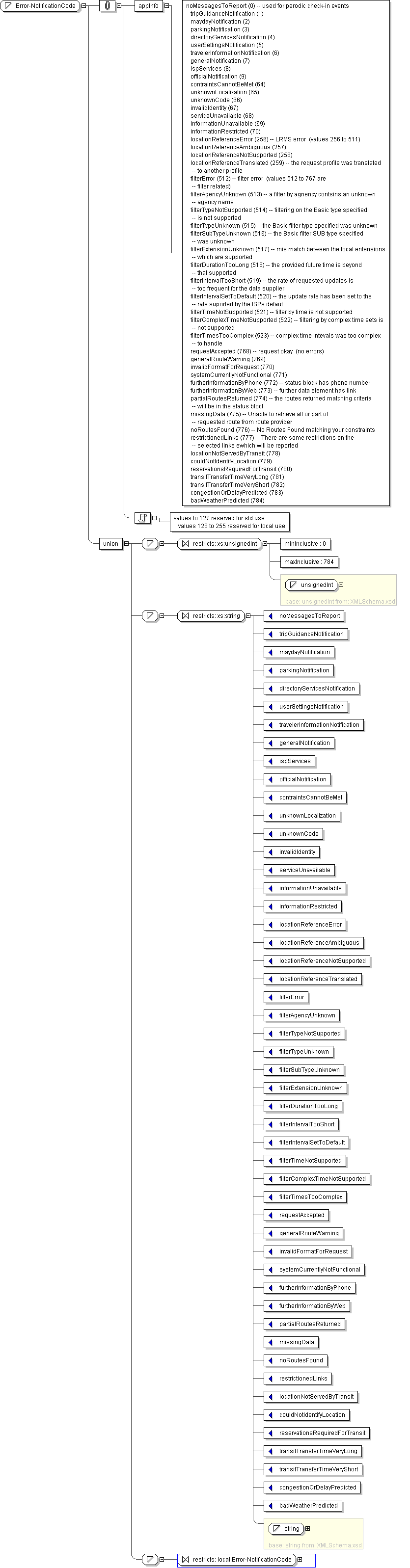

Diagram
h-1202552446
Schema Component Representation
<xs:simpleType name="Error-NotificationCode">
<xs:union>
<xs:simpleType>
<xs:restriction base=" xs:unsignedInt ">
<xs:minInclusive value="0"/>
<xs:maxInclusive value="784"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" xs:string ">
<xs:enumeration value="noMessagesToReport"/>
<xs:enumeration value="tripGuidanceNotification"/>
<xs:enumeration value="maydayNotification"/>
<xs:enumeration value="parkingNotification"/>
<xs:enumeration value="directoryServicesNotification"/>
<xs:enumeration value="userSettingsNotification"/>
<xs:enumeration value="travelerInformationNotification"/>
<xs:enumeration value="generalNotification"/>
<xs:enumeration value="ispServices"/>
<xs:enumeration value="officialNotification"/>
<xs:enumeration value="contraintsCannotBeMet"/>
<xs:enumeration value="unknownLocalization"/>
<xs:enumeration value="unknownCode"/>
<xs:enumeration value="invalidIdentity"/>
<xs:enumeration value="serviceUnavailable"/>
<xs:enumeration value="informationUnavailable"/>
<xs:enumeration value="informationRestricted"/>
<xs:enumeration value="locationReferenceError"/>
<xs:enumeration value="locationReferenceAmbiguous"/>
<xs:enumeration value="locationReferenceNotSupported"/>
<xs:enumeration value="locationReferenceTranslated"/>
<xs:enumeration value="filterError"/>
<xs:enumeration value="filterAgencyUnknown"/>
<xs:enumeration value="filterTypeNotSupported"/>
<xs:enumeration value="filterTypeUnknown"/>
<xs:enumeration value="filterSubTypeUnknown"/>
<xs:enumeration value="filterExtensionUnknown"/>
<xs:enumeration value="filterDurationTooLong"/>
<xs:enumeration value="filterIntervalTooShort"/>
<xs:enumeration value="filterIntervalSetToDefault"/>
<xs:enumeration value="filterTimeNotSupported"/>
<xs:enumeration value="filterComplexTimeNotSupported"/>
<xs:enumeration value="filterTimesTooComplex"/>
<xs:enumeration value="requestAccepted"/>
<xs:enumeration value="generalRouteWarning"/>
<xs:enumeration value="invalidFormatForRequest"/>
<xs:enumeration value="systemCurrentlyNotFunctional"/>
<xs:enumeration value="furtherInformationByPhone"/>
<xs:enumeration value="furtherInformationByWeb"/>
<xs:enumeration value="partialRoutesReturned"/>
<xs:enumeration value="missingData"/>
<xs:enumeration value="noRoutesFound"/>
<xs:enumeration value="restrictionedLinks"/>
<xs:enumeration value="locationNotServedByTransit"/>
<xs:enumeration value="couldNotIdentifyLocation"/>
<xs:enumeration value="reservationsRequiredForTransit"/>
<xs:enumeration value="transitTransferTimeVeryLong"/>
<xs:enumeration value="transitTransferTimeVeryShort"/>
<xs:enumeration value="congestionOrDelayPredicted"/>
<xs:enumeration value="badWeatherPredicted"/>
</xs:restriction>
</xs:simpleType>
<xs:simpleType>
<xs:restriction base=" local:Error-NotificationCode "/>
</xs:simpleType>
</xs:union>
</xs:simpleType>
