Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	RequestStatus
Used by (from the same schema document)	Complex Type StatusBlock
Abstract	no

XML Instance Representation

<...>

<id> im:ReferenceID </id> [0..1]

<supportedAgencies> tmdd:Organization-resource-identifier </supportedAgencies> [0..100]

<filterTypesInfo> URL-Link </filterTypesInfo> [0..1]

<lrmsTypeInfo> URL-Link </lrmsTypeInfo> [0..1]

<extensionTypeInfo> URL-Link </extensionTypeInfo> [0..1]

<maxDuration> TimeInterval </maxDuration> [0..1]

<minInterval> TimeInterval </minInterval> [0..1]

<localRequestStatus> local:RequestStatus </localRequestStatus> [0..1]

</...>

Schema Component Representation

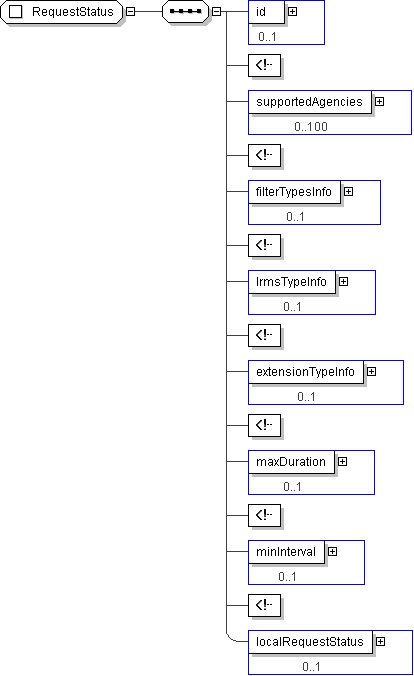

<xs:complexType name="RequestStatus">

<xs:sequence>

<xs:element name="id" type=" im:ReferenceID " minOccurs="0"/>

<-- a ref id will be returned with a sucessfull subscribe action. This value is used to refer to the subscription thereafter -->

<xs:element name="supportedAgencies" type=" tmdd:Organization-resource-identifier " minOccurs="0" maxOccurs="100"/>

<-- returns list of agencies -->

<xs:element name="filterTypesInfo" type=" URL-Link " minOccurs="0"/>

<-- returns information on the types of event which one can filter on -->

<xs:element name="lrmsTypeInfo" type=" URL-Link " minOccurs="0"/>

<-- returns information on the LRMS profiles supported or the type of error found in the request -->

<xs:element name="extensionTypeInfo" type=" URL-Link " minOccurs="0"/>

<-- returns information on any locally defined filters for the user -->

<xs:element name="maxDuration" type=" TimeInterval " minOccurs="0"/>

<-- returns the max allowed subscription time -->

<xs:element name="minInterval" type=" TimeInterval " minOccurs="0"/>

<-- returns min update interval supported -->

<xs:element name="localRequestStatus" type=" local:RequestStatus " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
