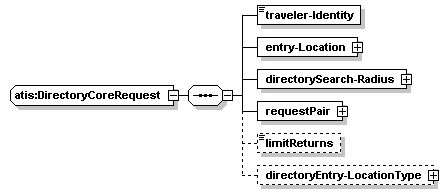

complexType atis:DirectoryCoreRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	traveler-Identity entry-Location directorySearch-Radius requestPair limitReturns directoryEntry-LocationType
used by	elements  atis:DirectoryNameRequest/basicRequest atis:DirectoryRequest/coreRequest
source	<xs:complexType name="DirectoryCoreRequest">   <xs:sequence>     <xs:element name="traveler-Identity" type="Traveler-Identity"/>     <xs:element name="entry-Location" type="RouteOrLocation"/>     <xs:element name="directorySearch-Radius" type="SearchRadius"/>     <xs:element name="requestPair" type="DirectoryTypePair"/>     <xs:element name="limitReturns" type="LimitReturns" minOccurs="0"/>     <xs:element name="directoryEntry-LocationType" type="lrms:LocationReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

element atis:DirectoryCoreRequest/traveler-Identity

diagram
type	atis:Traveler-Identity
properties	isRef  0 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity"/>

element atis:DirectoryCoreRequest/entry-Location

diagram
type	atis:RouteOrLocation
properties	isRef  0 content  complex
children	route id location
source	<xs:element name="entry-Location" type="RouteOrLocation"/>

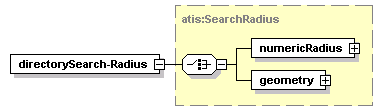

element atis:DirectoryCoreRequest/directorySearch-Radius

diagram
type	atis:SearchRadius
properties	isRef  0 content  complex
children	numericRadius geometry
source	<xs:element name="directorySearch-Radius" type="SearchRadius"/>

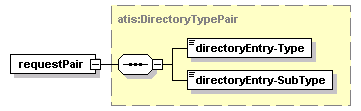

element atis:DirectoryCoreRequest/requestPair

diagram
type	atis:DirectoryTypePair
properties	isRef  0 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="requestPair" type="DirectoryTypePair"/>

element atis:DirectoryCoreRequest/limitReturns

diagram
type	atis:LimitReturns
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="limitReturns" type="LimitReturns" minOccurs="0"/>

element atis:DirectoryCoreRequest/directoryEntry-LocationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="directoryEntry-LocationType" type="lrms:LocationReference" minOccurs="0"/>
