complexType atis:SearchRadius

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	numericRadius geometry
used by	elements  atis:DirectoryCoreRequest/directorySearch-Radius atis:DirectoryAdvancedRequest/search-Radius atis:DirectoryExtendedRequest/search-Radius
source	<xs:complexType name="SearchRadius">   <xs:choice>     <xs:element name="numericRadius" type="lrms:Distance"/>     <!-- NumericRadius -->     <xs:element name="geometry" type="lrms:LocationReference"/>   </xs:choice> </xs:complexType>

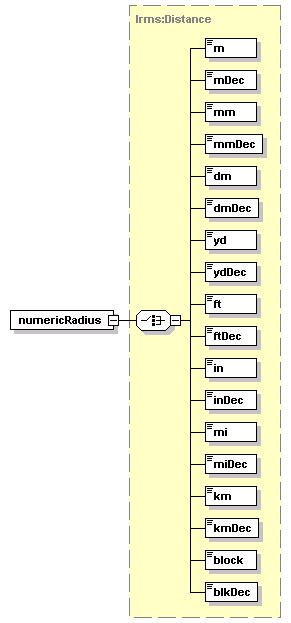

element atis:SearchRadius/numericRadius

diagram
type	lrms:Distance
properties	isRef  0 content  complex
children	m mDec mm mmDec dm dmDec yd ydDec ft ftDec in inDec mi miDec km kmDec block blkDec
source	<xs:element name="numericRadius" type="lrms:Distance"/>

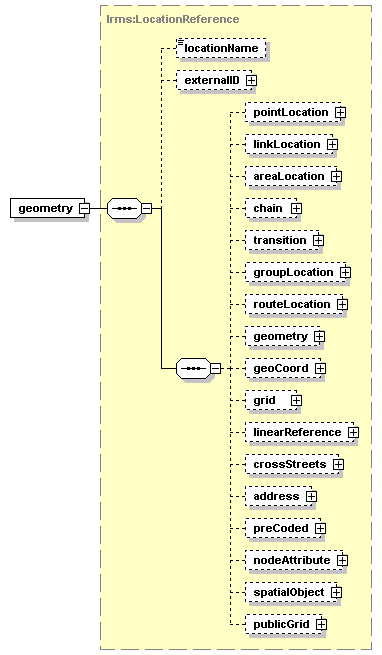

element atis:SearchRadius/geometry

diagram
type	lrms:LocationReference
properties	isRef  0 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="geometry" type="lrms:LocationReference"/>
