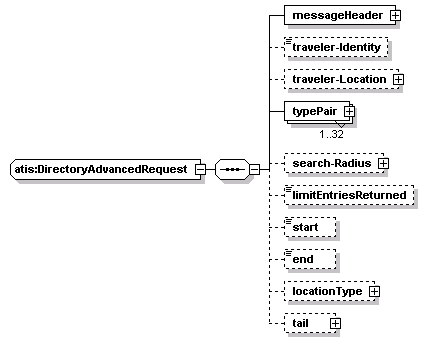

complexType atis:DirectoryAdvancedRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	messageHeader traveler-Identity traveler-Location typePair search-Radius limitEntriesReturned start end locationType tail
used by	element  atis:directoryAdvancedRequest
source	<xs:complexType name="DirectoryAdvancedRequest">   <xs:sequence>     <xs:element name="messageHeader" type="MessageHeader"/>     <xs:element name="traveler-Identity" type="Traveler-Identity" minOccurs="0"/>     <xs:element name="traveler-Location" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="typePair" type="DirectoryTypePair" maxOccurs="32"/>     <xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>     <xs:element name="limitEntriesReturned" type="LimitReturns" minOccurs="0"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>     <xs:element name="tail" type="Tail" minOccurs="0"/>   </xs:sequence> </xs:complexType>

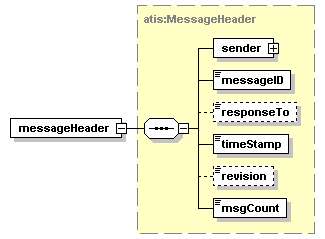

element atis:DirectoryAdvancedRequest/messageHeader

diagram
type	atis:MessageHeader
properties	isRef  0 content  complex
children	sender messageID responseTo timeStamp revision msgCount
source	<xs:element name="messageHeader" type="MessageHeader"/>

element atis:DirectoryAdvancedRequest/traveler-Identity

diagram
type	atis:Traveler-Identity
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minLength  1 maxLength  12
source	<xs:element name="traveler-Identity" type="Traveler-Identity" minOccurs="0"/>

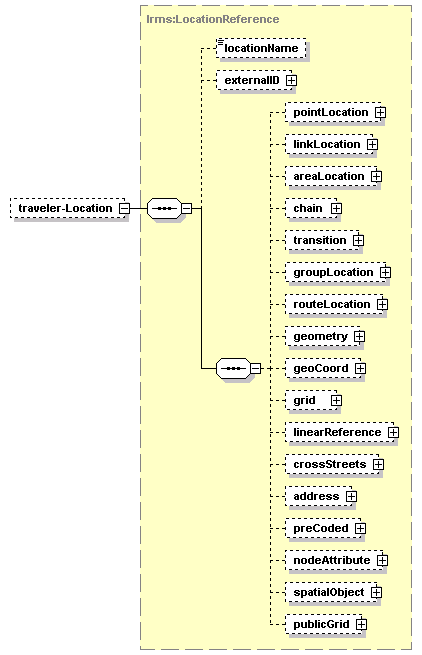

element atis:DirectoryAdvancedRequest/traveler-Location

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="traveler-Location" type="lrms:LocationReference" minOccurs="0"/>

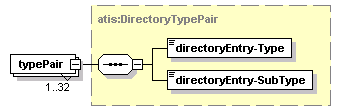

element atis:DirectoryAdvancedRequest/typePair

diagram
type	atis:DirectoryTypePair
properties	isRef  0 minOcc  1 maxOcc  32 content  complex
children	directoryEntry-Type directoryEntry-SubType
source	<xs:element name="typePair" type="DirectoryTypePair" maxOccurs="32"/>

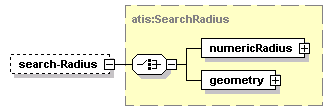

element atis:DirectoryAdvancedRequest/search-Radius

diagram
type	atis:SearchRadius
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	numericRadius geometry
source	<xs:element name="search-Radius" type="SearchRadius" minOccurs="0"/>

element atis:DirectoryAdvancedRequest/limitEntriesReturned

diagram
type	atis:LimitReturns
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
facets	minInclusive  1
source	<xs:element name="limitEntriesReturned" type="LimitReturns" minOccurs="0"/>

element atis:DirectoryAdvancedRequest/start

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element atis:DirectoryAdvancedRequest/end

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

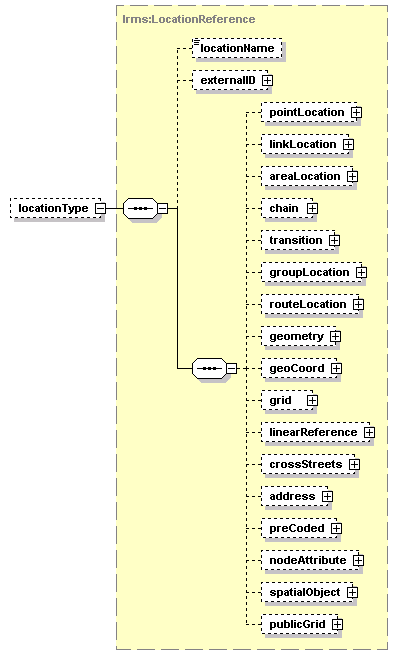

element atis:DirectoryAdvancedRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>

element atis:DirectoryAdvancedRequest/tail

diagram
type	atis:Tail
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	entry
source	<xs:element name="tail" type="Tail" minOccurs="0"/>
