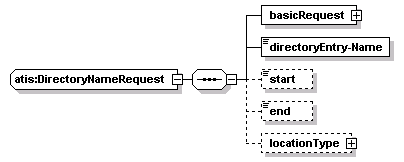

complexType atis:DirectoryNameRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	basicRequest directoryEntry-Name start end locationType
used by	element  atis:directoryNameRequest
source	<xs:complexType name="DirectoryNameRequest">   <xs:sequence>     <xs:element name="basicRequest" type="DirectoryCoreRequest"/>     <xs:element name="directoryEntry-Name" type="Name"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>     <xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>   </xs:sequence> </xs:complexType>

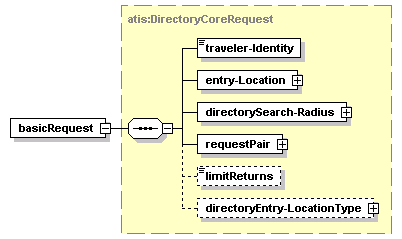

element atis:DirectoryNameRequest/basicRequest

diagram
type	atis:DirectoryCoreRequest
properties	isRef  0 content  complex
children	traveler-Identity entry-Location directorySearch-Radius requestPair limitReturns directoryEntry-LocationType
source	<xs:element name="basicRequest" type="DirectoryCoreRequest"/>

element atis:DirectoryNameRequest/directoryEntry-Name

diagram
type	atis:Name
properties	isRef  0 content  simple
facets	minLength  1 maxLength  30
source	<xs:element name="directoryEntry-Name" type="Name"/>

element atis:DirectoryNameRequest/start

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element atis:DirectoryNameRequest/end

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>

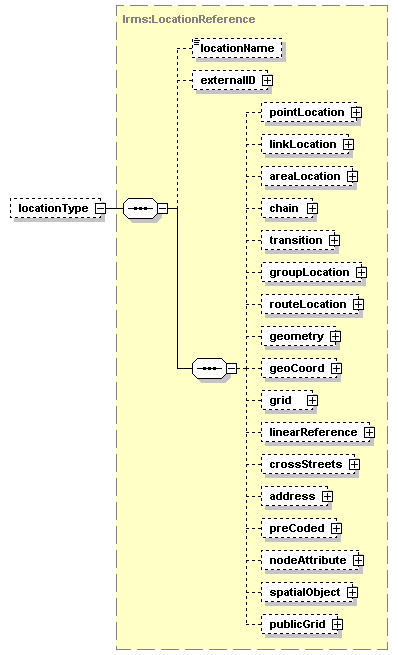

element atis:DirectoryNameRequest/locationType

diagram
type	lrms:LocationReference
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	locationName externalID pointLocation linkLocation areaLocation chain transition groupLocation routeLocation geometry geoCoord grid linearReference crossStreets address preCoded nodeAttribute spatialObject publicGrid
attributes	Name   Type   Use   Default   Fixed   annotation locationID lrms:String-index64
source	<xs:element name="locationType" type="lrms:LocationReference" minOccurs="0"/>
