complexType atis:DirectoryRequest

diagram
namespace	http://www.ATIS-Draft-03-00-79
children	coreRequest start end
used by	element  atis:directoryRequest
source	<xs:complexType name="DirectoryRequest">   <xs:sequence>     <xs:element name="coreRequest" type="DirectoryCoreRequest"/>     <xs:element name="start" type="DateTimePair" minOccurs="0"/>     <xs:element name="end" type="DateTimePair" minOccurs="0"/>   </xs:sequence> </xs:complexType>

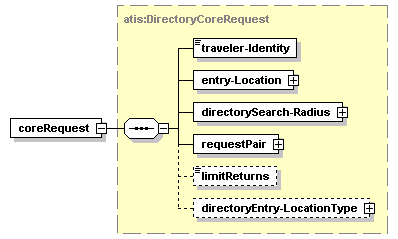

element atis:DirectoryRequest/coreRequest

diagram
type	atis:DirectoryCoreRequest
properties	isRef  0 content  complex
children	traveler-Identity entry-Location directorySearch-Radius requestPair limitReturns directoryEntry-LocationType
source	<xs:element name="coreRequest" type="DirectoryCoreRequest"/>

element atis:DirectoryRequest/start

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="start" type="DateTimePair" minOccurs="0"/>

element atis:DirectoryRequest/end

diagram
type	atis:DateTimePair
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
source	<xs:element name="end" type="DateTimePair" minOccurs="0"/>
