Documentation for ATIS-Draft-03-00-79

Element: ccPTVAdherenceSub

[Table of contents]

Name ccPTVAdherenceSub
Type CcPTVAdherenceSub
Nillable no
Abstract no

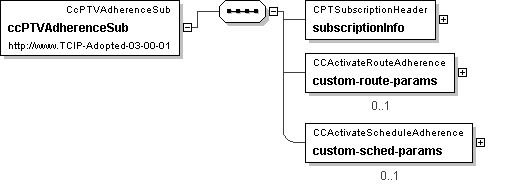

Logical Diagram
h-841091506 h1412172963 h-511253387
XML Instance Representation
<ccPTVAdherenceSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<custom-route-params> CCActivateRouteAdherence </custom-route-params> [0..1]
<custom-sched-params> CCActivateScheduleAdherence </custom-sched-params> [0..1]
</ccPTVAdherenceSub>

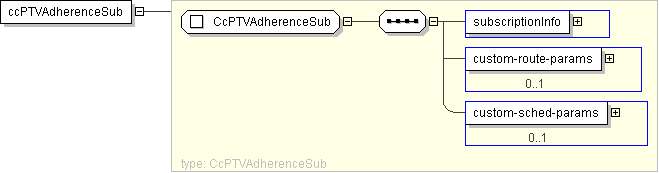

Diagram
h-527207252 h2104458060 h1980060750
Schema Component Representation
<xs:element name="ccPTVAdherenceSub" type=" CcPTVAdherenceSub "/>
