Documentation for ATIS-Draft-03-00-79

Element: piItineraryMapSub

[Table of contents]

Name piItineraryMapSub
Type PiItineraryMapSub
Nillable no
Abstract no

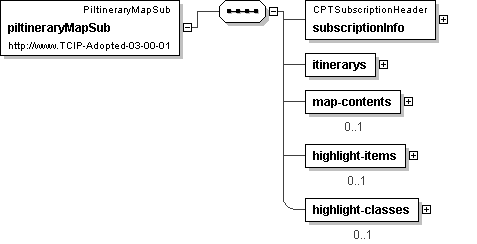

Logical Diagram
h-841091506 h-1768713749 h36897998 h-537579996 h1814066570
XML Instance Representation
<piItineraryMapSub>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<itinerarys> [1]
Start Sequence [1..50]
<itinerary> atis:Route </itinerary> [1]
End Sequence
</itinerarys>
<map-contents> [0..1]
Start Sequence [1..200]
<map-content> CPT-FeatureType </map-content> [1]
End Sequence
</map-contents>
<highlight-items> [0..1]
Start Sequence [1..50]
<highlight-item> CPTGenericIden </highlight-item> [1]
End Sequence
</highlight-items>
<highlight-classes> [0..1]
Start Sequence [1..50]
<highlight-classe> CPT-FeatureType </highlight-classe> [1]
End Sequence
</highlight-classes>
</piItineraryMapSub>

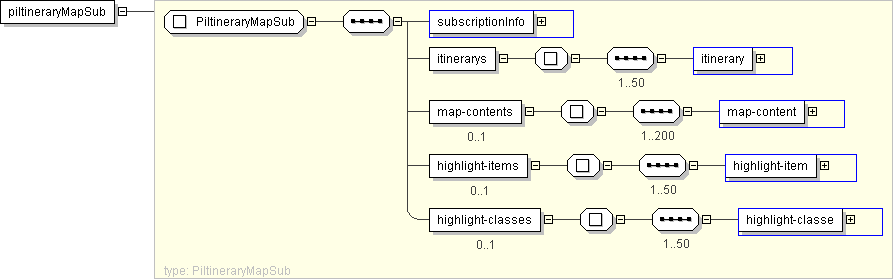

Diagram
h-527207252 h-1110646556 h-1229197083 h-1935084263 h-1229197083
Schema Component Representation
<xs:element name="piItineraryMapSub" type=" PiItineraryMapSub "/>
