Documentation for ATIS-Draft-03-00-79

Element: piDirections

[Table of contents]

Name piDirections
Type PiDirections
Nillable no
Abstract no

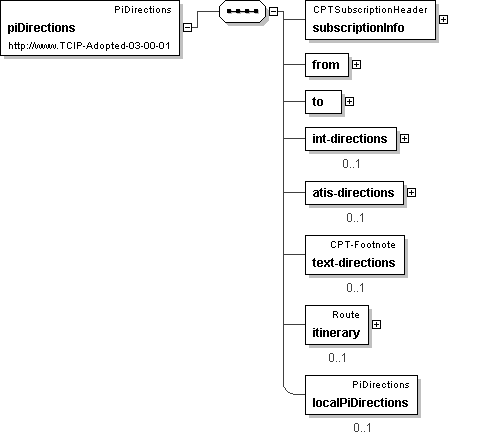

Logical Diagram
h-841091506 h-573591795 h575939230 h-216549099 h1644225729 h2021154696
XML Instance Representation
<piDirections>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<from> [1]
Start Choice [1]
<from-geoloc> lrms:GeoLocation </from-geoloc> [1]
<from-indoor> SPInteriorLocation </from-indoor> [1]
<from-lm-name> SP-LandmarkName </from-lm-name> [1]
<from-lm-id> PI-LandmarkID </from-lm-id> [1]
End Choice
</from>
<to> [1]
Start Choice [1]
<to-geoloc> lrms:GeoLocation </to-geoloc> [1]
<to-indoor> SPInteriorLocation </to-indoor> [1]
<to-lm-name> SP-LandmarkName </to-lm-name> [1]
<to-lm-id> PI-LandmarkID </to-lm-id> [1]
End Choice
</to>
<int-directions> [0..1]
Start Sequence [1..50]
<int-direction> SPIntDirection </int-direction> [1]
End Sequence
</int-directions>
<atis-directions> [0..1]
Start Sequence [1..50]
<atis-direction> atis:ManeuverInstruction </atis-direction> [1]
End Sequence
</atis-directions>
<text-directions> CPT-Footnote </text-directions> [0..1]
<itinerary> atis:Route </itinerary> [0..1]
<localPiDirections> local:PiDirections </localPiDirections> [0..1]
</piDirections>

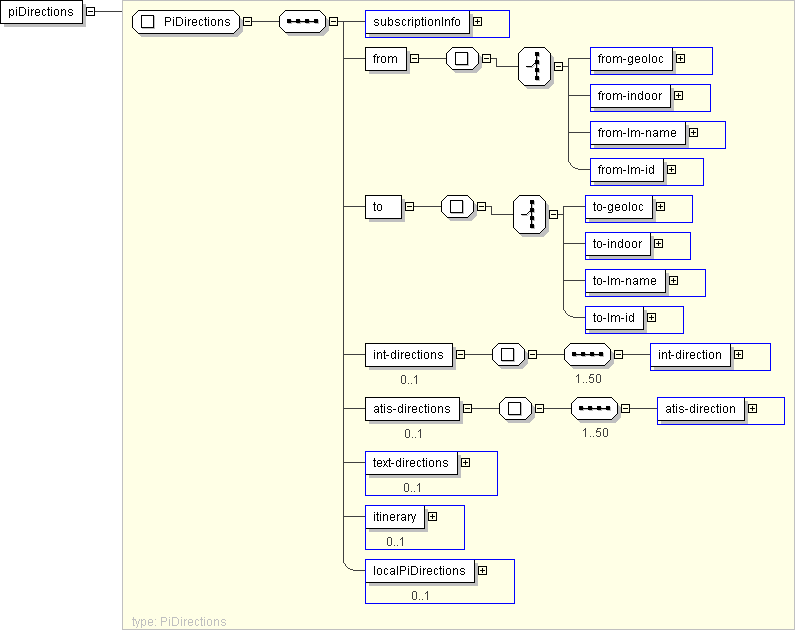

Diagram
h-527207252 h-542031743 h-1551571161 h-72524690 h-841321854 h-542031743 h-1551571161 h-72524690 h-841321854 h-1701639438 h852592208 h-125442069 h-1110646556 h395095218
Schema Component Representation
<xs:element name="piDirections" type=" PiDirections "/>
