Documentation for ATIS-Draft-03-00-79

Element: ccPTVehicleAlarm

[Table of contents]

Name ccPTVehicleAlarm
Type CcPTVehicleAlarm
Nillable no
Abstract no

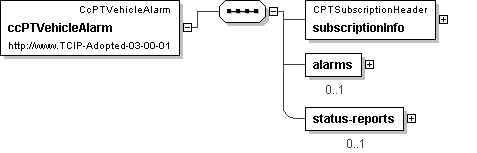

Logical Diagram
h-841091506 h-1614996763 h-858592633
XML Instance Representation
<ccPTVehicleAlarm>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<alarms> [0..1]
Start Sequence [1..20]
<alarm> CCAlarm </alarm> [1]
End Sequence
</alarms>
<status-reports> [0..1]
Start Sequence [1..20]
<status-report> OBHealthStatusRecord </status-report> [1]
End Sequence
</status-reports>
</ccPTVehicleAlarm>

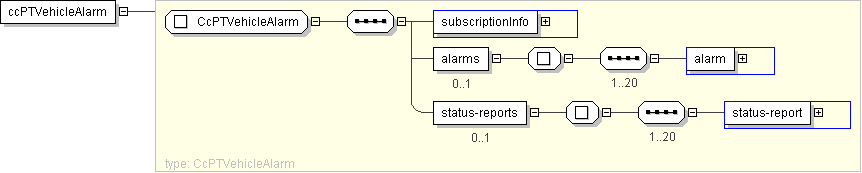

Diagram
h-527207252 h379918796 h-144448905
Schema Component Representation
<xs:element name="ccPTVehicleAlarm" type=" CcPTVehicleAlarm "/>
