Documentation for ATIS-Draft-03-00-79

Element: schOperatorAssignmentList

[Table of contents]

Name schOperatorAssignmentList
Type SchOperatorAssignmentList
Nillable no
Abstract no

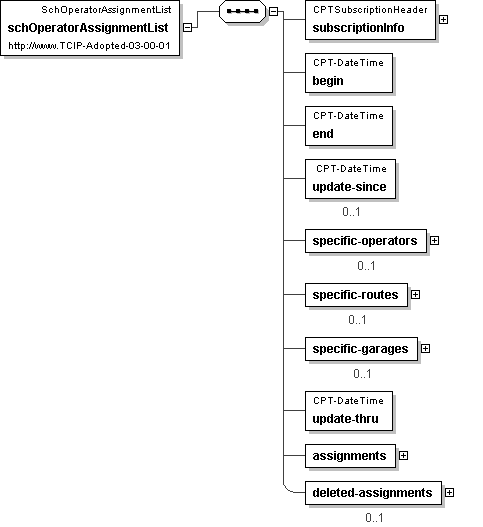

Logical Diagram
h-841091506 h1503907735 h902215938 h622141300 h-950913405 h1102417359
XML Instance Representation
<schOperatorAssignmentList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<begin> CPT-DateTime </begin> [1]
<end> CPT-DateTime </end> [1]
<update-since> CPT-DateTime </update-since> [0..1]
<specific-operators> [0..1]
Start Sequence [1..25000]
<specific-operator> CPTOperatorIden </specific-operator> [1]
End Sequence
</specific-operators>
<specific-routes> [0..1]
Start Sequence [1..500]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-garages> [0..1]
Start Sequence [1..100]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<update-thru> CPT-DateTime </update-thru> [1]
<assignments> [1]
Start Sequence [1..100000]
<assignment> SCHOperatorAssignment </assignment> [1]
End Sequence
</assignments>
<deleted-assignments> [0..1]
Start Sequence [1..100000]
<deleted-assignment> SCHRunIden </deleted-assignment> [1]
End Sequence
</deleted-assignments>
</schOperatorAssignmentList>

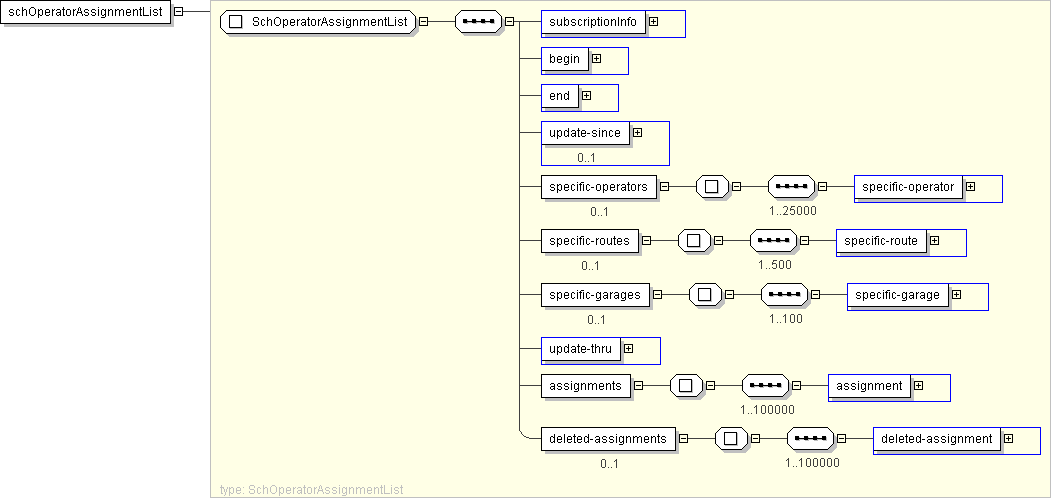

Diagram
h-527207252 h1272267302 h1272267302 h1272267302 h324755946 h-963684166 h2133900120 h1272267302 h1172850020 h355204924
Schema Component Representation
<xs:element name="schOperatorAssignmentList" type=" SchOperatorAssignmentList "/>
