Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

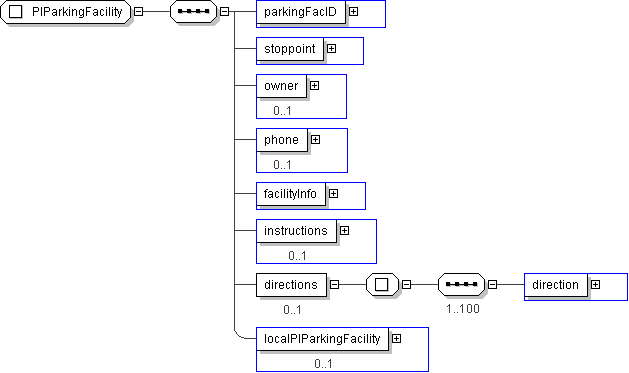

Name	PIParkingFacility
Used by (from the same schema document)	Complex Type PiStoppointParking , Complex Type PINearestStop
Abstract	no

XML Instance Representation

<...>

<parkingFacID> PI-ParkingFacID </parkingFacID> [1]

<stoppoint> CPTStoppointIden </stoppoint> [1]

<owner> PI-ParkingOwnerName </owner> [0..1]

<phone> PI-ParkingFacPhone </phone> [0..1]

<facilityInfo> atis:ParkingLotInformation </facilityInfo> [1]

<instructions> atis:ParkingInstructions </instructions> [0..1]

<directions> [0..1]
Start Sequence [1..100]

<direction> atis:ManeuverInstruction </direction> [1]

End Sequence
</directions>

<localPIParkingFacility> local:PIParkingFacility </localPIParkingFacility> [0..1]

</...>

Schema Component Representation

<xs:complexType name="PIParkingFacility">

<xs:sequence>

<xs:element name="parkingFacID" type=" PI-ParkingFacID "/>

<xs:element name="stoppoint" type=" CPTStoppointIden "/>

<xs:element name="owner" type=" PI-ParkingOwnerName " minOccurs="0"/>

<xs:element name="phone" type=" PI-ParkingFacPhone " minOccurs="0"/>

<xs:element name="facilityInfo" type=" atis:ParkingLotInformation "/>

<xs:element name="instructions" type=" atis:ParkingInstructions " minOccurs="0"/>

<xs:element name="directions" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="direction" type=" atis:ManeuverInstruction "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="localPIParkingFacility" type=" local:PIParkingFacility " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
