Documentation for ATIS-Draft-03-00-79

Element: piStoppointParking

[Table of contents]

Name piStoppointParking
Type PiStoppointParking
Nillable no
Abstract no

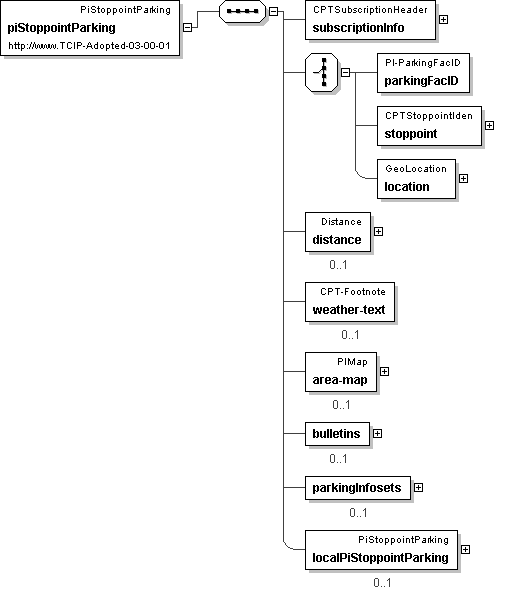

Logical Diagram
h-841091506 h-2071098037 h-1128346216 h1554037208 h-401733121 h1841596969 h-1924658540 h-114978901
XML Instance Representation
<piStoppointParking>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
Start Choice [1]
<parkingFacID> PI-ParkingFacID </parkingFacID> [1]
<stoppoint> CPTStoppointIden </stoppoint> [1]
<location> lrms:GeoLocation </location> [1]
End Choice
<distance> lrms:Distance </distance> [0..1]
<weather-text> CPT-Footnote </weather-text> [0..1]
<area-map> PIMap </area-map> [0..1]
<bulletins> [0..1]
Start Sequence [1..10]
<bulletin> PIServiceBulletin </bulletin> [1]
End Sequence
</bulletins>
<parkingInfosets> [0..1]
Start Sequence [1..100]
<parkingInfoset> PIParkingFacility </parkingInfoset> [1]
End Sequence
</parkingInfosets>
<localPiStoppointParking> local:PiStoppointParking </localPiStoppointParking> [0..1]
</piStoppointParking>

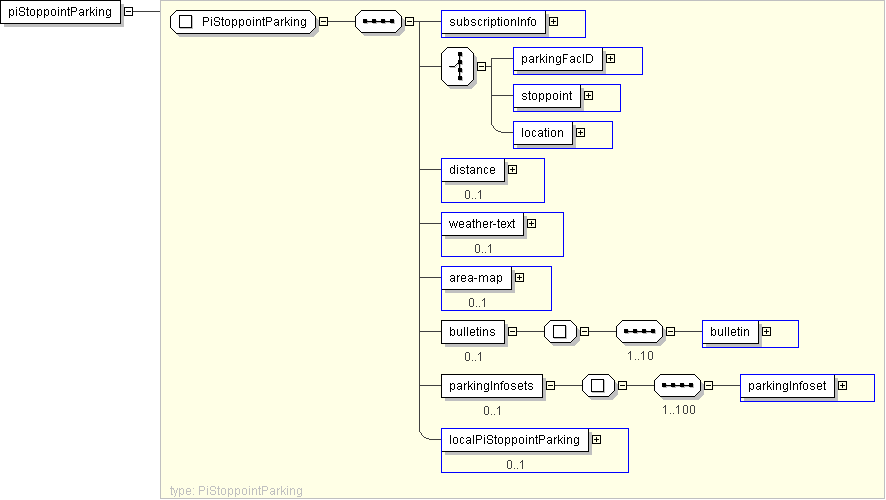

Diagram
h-527207252 h-1170457158 h2146772752 h-542031743 h1439634298 h-125442069 h-1113664674 h-1685972354 h-947091075 h730304104
Schema Component Representation
<xs:element name="piStoppointParking" type=" PiStoppointParking "/>
