Documentation for ATIS-Draft-03-00-79

Element: schVehicleAssignmentFile

[Table of contents]

Name schVehicleAssignmentFile
Type SchVehicleAssignmentFile
Nillable no
Abstract no

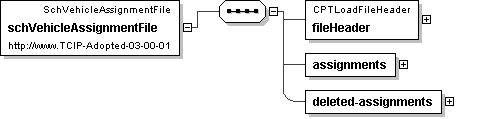

Logical Diagram
h-2078410676 h-950913405 h1102417359
XML Instance Representation
<schVehicleAssignmentFile>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<assignments> [1]
Start Sequence [1..25000]
<assignment> SCHVehicleAssignment </assignment> [1]
End Sequence
</assignments>
<deleted-assignments> [1]
Start Sequence [1..25000]
<deleted-assignment> SCHBlockIden </deleted-assignment> [1]
End Sequence
</deleted-assignments>
</schVehicleAssignmentFile>

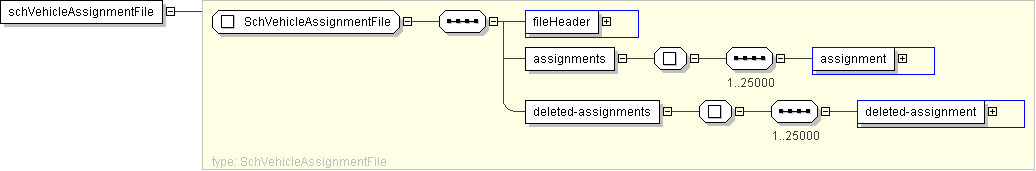

Diagram
h-956766127 h-1736634906 h-258889474
Schema Component Representation
<xs:element name="schVehicleAssignmentFile" type=" SchVehicleAssignmentFile "/>
