Documentation for ATIS-Draft-03-00-79

Element: schVehicleAssignmentList

[Table of contents]

Name schVehicleAssignmentList
Type SchVehicleAssignmentList
Nillable no
Abstract no

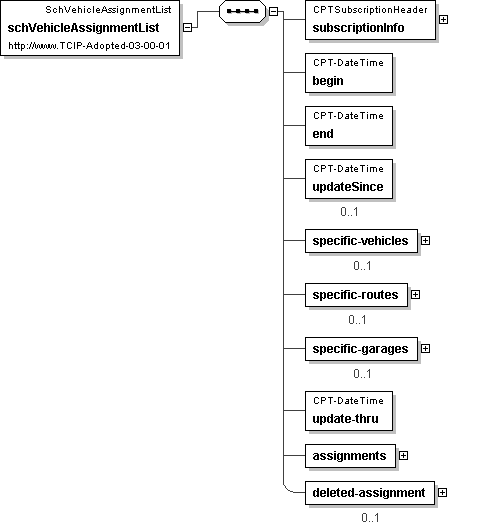

Logical Diagram
h-841091506 h1454893695 h902215938 h622141300 h-950913405 h1559582500
XML Instance Representation
<schVehicleAssignmentList>
<subscriptionInfo> CPTSubscriptionHeader </subscriptionInfo> [1]
<begin> CPT-DateTime </begin> [1]
<end> CPT-DateTime </end> [1]
<updateSince> CPT-DateTime </updateSince> [0..1]
<specific-vehicles> [0..1]
Start Sequence [1..25000]
<specific-vehicle> CPTVehicleIden </specific-vehicle> [1]
End Sequence
</specific-vehicles>
<specific-routes> [0..1]
Start Sequence [1..500]
<specific-route> SCHRouteIden </specific-route> [1]
End Sequence
</specific-routes>
<specific-garages> [0..1]
Start Sequence [1..100]
<specific-garage> CPTTransitFacilityIden </specific-garage> [1]
End Sequence
</specific-garages>
<update-thru> CPT-DateTime </update-thru> [1]
<assignments> [1]
Start Sequence [1..25000]
<assignment> SCHVehicleAssignment </assignment> [1]
End Sequence
</assignments>
<deleted-assignment> [0..1]
Start Sequence [1..25000]
<deleted-assignment-item> SCHBlockIden </deleted-assignment-item> [1]
End Sequence
</deleted-assignment>
</schVehicleAssignmentList>

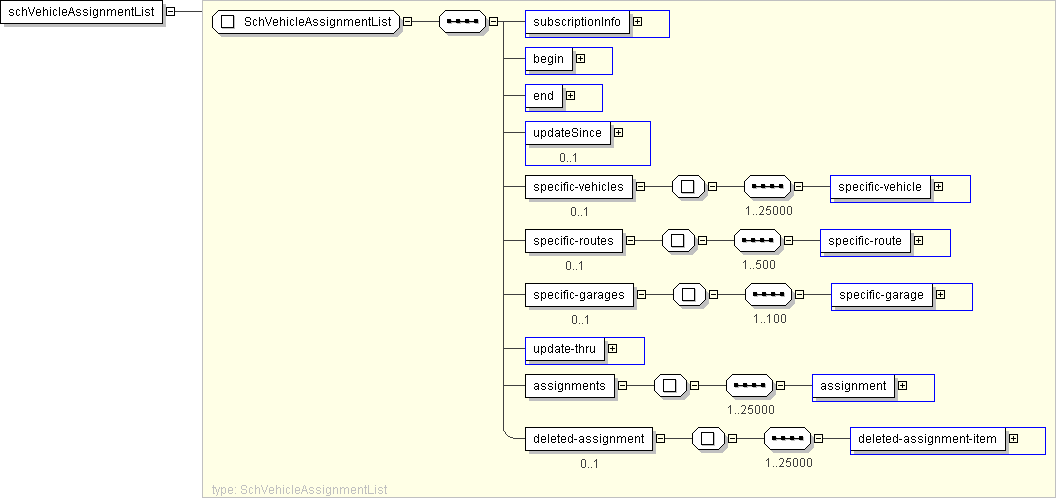

Diagram
h-527207252 h1272267302 h1272267302 h1272267302 h1471596526 h-963684166 h2133900120 h1272267302 h-1736634906 h-258889474
Schema Component Representation
<xs:element name="schVehicleAssignmentList" type=" SchVehicleAssignmentList "/>
