Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	OBParameterDumpEntry
Used by (from the same schema document)	Complex Type CcPTVehicleParameter , Complex Type CcPTVPerformanceData , Complex Type CcVehicleShutdownReport , Complex Type CcVehicleStartupReport , Complex Type CCOperatingRecord , Complex Type CCVehicleMechRecord
Abstract	no

XML Instance Representation

<...>

<recorded-Time> CPT-DateTime </recorded-Time> [0..1]

<parameter-id> OB-PID </parameter-id> [1]

<parameter-value> OB-Parameter </parameter-value> [1]

<localOBParameterDumpEntry> local:OBParameterDumpEntry </localOBParameterDumpEntry> [0..1]

</...>

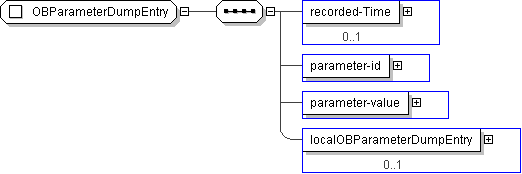

Diagram

Schema Component Representation

<xs:complexType name="OBParameterDumpEntry">

<xs:sequence>

<xs:element name="recorded-Time" type=" CPT-DateTime " minOccurs="0"/>

<xs:element name="parameter-id" type=" OB-PID "/>

<xs:element name="parameter-value" type=" OB-Parameter "/>

<xs:element name="localOBParameterDumpEntry" type=" local:OBParameterDumpEntry " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
