Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	CcVehicleStartupReport
Used by (from the same schema document)	Element ccVehicleStartupReport
Abstract	no

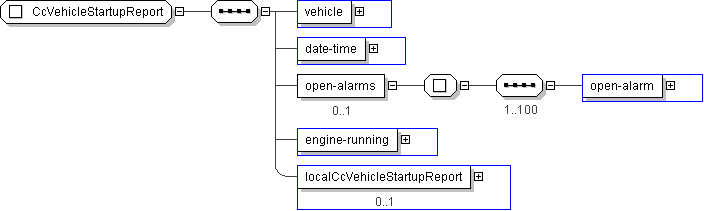

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<date-time> CPT-DateTime </date-time> [1]

<open-alarms> [0..1]
Start Sequence [1..100]

<open-alarm> OBParameterDumpEntry </open-alarm> [1]

End Sequence
</open-alarms>

<engine-running> CPT-Boolean </engine-running> [1]

<localCcVehicleStartupReport> local:CcVehicleStartupReport </localCcVehicleStartupReport> [0..1]

</...>

Schema Component Representation

<xs:complexType name="CcVehicleStartupReport">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="date-time" type=" CPT-DateTime "/>

<xs:element name="open-alarms" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="open-alarm" type=" OBParameterDumpEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="engine-running" type=" CPT-Boolean "/>

<xs:element name="localCcVehicleStartupReport" type=" local:CcVehicleStartupReport " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
