Documentation for ATIS-Draft-03-00-79

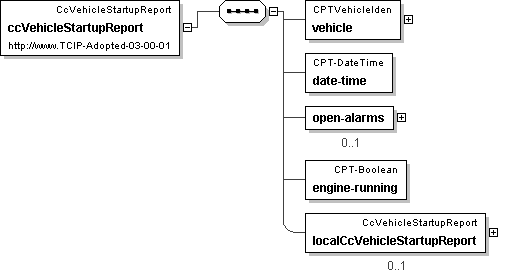

Logical Diagram

XML Instance Representation

<vehicle> CPTVehicleIden </vehicle> [1]

<date-time> CPT-DateTime </date-time> [1]

<open-alarms> [0..1]
Start Sequence [1..100]

<open-alarm> OBParameterDumpEntry </open-alarm> [1]

End Sequence
</open-alarms>

<engine-running> CPT-Boolean </engine-running> [1]

<localCcVehicleStartupReport> local:CcVehicleStartupReport </localCcVehicleStartupReport> [0..1]

</ccVehicleStartupReport>

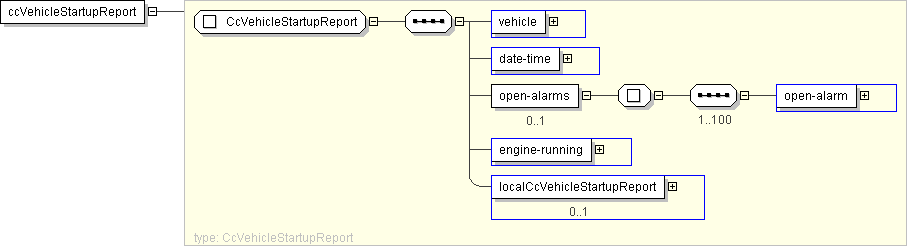

Diagram

Schema Component Representation

<xs:element name="ccVehicleStartupReport" type=" CcVehicleStartupReport "/>
