Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

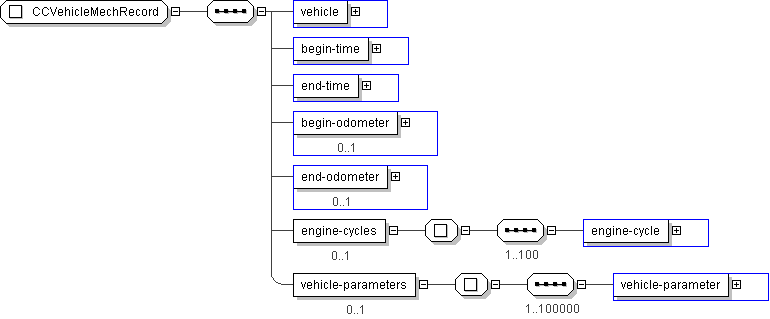

Name	CCVehicleMechRecord
Used by (from the same schema document)	Complex Type CcFleetMechanicalData
Abstract	no

XML Instance Representation

<...>

<vehicle> CPTVehicleIden </vehicle> [1]

<begin-time> CPT-DateTime </begin-time> [1]

<end-time> CPT-DateTime </end-time> [1]

<begin-odometer> CPT-GenericCounter </begin-odometer> [0..1]

<end-odometer> CPT-GenericCounter </end-odometer> [0..1]

<engine-cycles> [0..1]
Start Sequence [1..100]

<engine-cycle> CCEngineStartStop </engine-cycle> [1]

End Sequence
</engine-cycles>

<vehicle-parameters> [0..1]
Start Sequence [1..100000]

<vehicle-parameter> OBParameterDumpEntry </vehicle-parameter> [1]

End Sequence
</vehicle-parameters>

</...>

Schema Component Representation

<xs:complexType name="CCVehicleMechRecord">

<xs:sequence>

<xs:element name="vehicle" type=" CPTVehicleIden "/>

<xs:element name="begin-time" type=" CPT-DateTime "/>

<xs:element name="end-time" type=" CPT-DateTime "/>

<xs:element name="begin-odometer" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="end-odometer" type=" CPT-GenericCounter " minOccurs="0"/>

<xs:element name="engine-cycles" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100">

<xs:element name="engine-cycle" type=" CCEngineStartStop "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="vehicle-parameters" minOccurs="0">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="100000">

<xs:element name="vehicle-parameter" type=" OBParameterDumpEntry "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
