Documentation for ATIS-Draft-03-00-79

Complex Type: CCOperatingRecord

[Table of contents]

Super-types: None
Sub-types: None
Name CCOperatingRecord
Used by (from the same schema document) Complex Type CcOperatingData
Abstract no
XML Instance Representation
<...>
<vehicle> CPTVehicleIden </vehicle> [0..1]
<begin-datetime> CPT-DateTime </begin-datetime> [1]
<end-datetime> CPT-DateTime </end-datetime> [1]
<operators> [0..1]
Start Sequence [1..100]
<operator> CCSignOnOff </operator> [1]
End Sequence
</operators>
<engine-cycles> [0..1]
Start Sequence [1..100]
<engine-cycle> CCEngineStartStop </engine-cycle> [1]
End Sequence
</engine-cycles>
<vehicle-parameters> [0..1]
Start Sequence [1..100000]
<vehicle-parameter> OBParameterDumpEntry </vehicle-parameter> [1]
End Sequence
</vehicle-parameters>
<work-history> [0..1]
Start Sequence [1..100000]
<work-history-item> CCBlockWorkRecord </work-history-item> [1]
End Sequence
</work-history>
<localCCOperatingRecord> local:CCOperatingRecord </localCCOperatingRecord> [0..1]
</...>

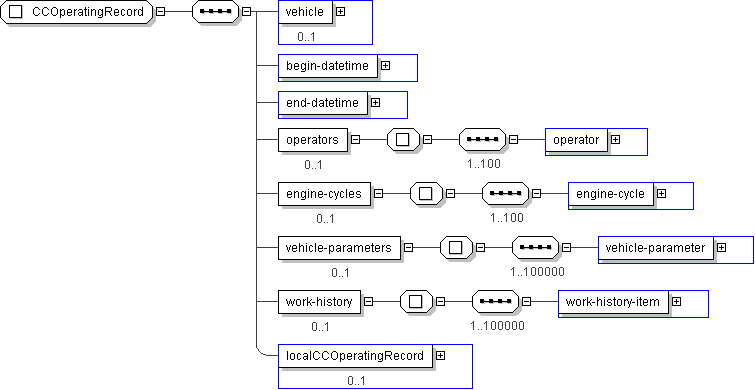

Diagram
h1471596526 h1272267302 h1272267302 h301338958 h863670557 h-1550992307 h-826694422 h-146130259
Schema Component Representation
<xs:complexType name="CCOperatingRecord">
<xs:sequence>
<xs:element name="vehicle" type=" CPTVehicleIden " minOccurs="0"/>
<xs:element name="begin-datetime" type=" CPT-DateTime "/>
<xs:element name="end-datetime" type=" CPT-DateTime "/>
<xs:element name="operators" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="operator" type=" CCSignOnOff "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="engine-cycles" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100">
<xs:element name="engine-cycle" type=" CCEngineStartStop "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="vehicle-parameters" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100000">
<xs:element name="vehicle-parameter" type=" OBParameterDumpEntry "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="work-history" minOccurs="0">
<xs:complexType>
<xs:sequence minOccurs="1" maxOccurs="100000">
<xs:element name="work-history-item" type=" CCBlockWorkRecord "/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="localCCOperatingRecord" type=" local:CCOperatingRecord " minOccurs="0"/>
</xs:sequence>
</xs:complexType>
