Documentation for ATIS-Draft-03-00-79

Element: tspBusinessRules

[Table of contents]

Name tspBusinessRules
Type TspBusinessRules
Nillable no
Abstract no

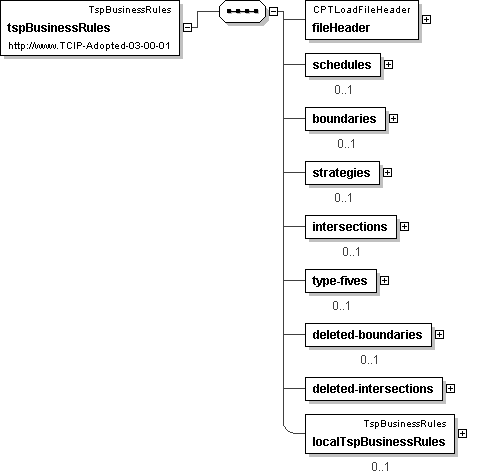

Logical Diagram
h-2078410676 h417484601 h-550725781 h831497332 h151531271 h-1779633967 h-761583969 h2012406611 h-1753234610
XML Instance Representation
<tspBusinessRules>
<fileHeader> CPTLoadFileHeader </fileHeader> [1]
<schedules> [0..1]
Start Sequence [1..10000]
<schedule> TSPScheduleEntry </schedule> [1]
End Sequence
</schedules>
<boundaries> [0..1]
Start Sequence [1..10000]
<boundary> TSPBoundaryEntry </boundary> [1]
End Sequence
</boundaries>
<strategies> [0..1]
Start Sequence [1..10000]
<strategy> TSPStrategyEntry </strategy> [1]
End Sequence
</strategies>
<intersections> [0..1]
Start Sequence [1..10000]
<intersection> TSPIntersectionEntry </intersection> [1]
End Sequence
</intersections>
<type-fives> [0..1]
Start Sequence [1..10000]
<type-five> TSPScenario5Intersection </type-five> [1]
End Sequence
</type-fives>
<deleted-boundaries> [0..1]
Start Sequence [1..10000]
<deleted-boundary> TSP-BoundaryID </deleted-boundary> [1]
End Sequence
</deleted-boundaries>
<deleted-intersections> [1]
Start Sequence [1..100000]
<deleted-intersection> CPTIntersectionIden </deleted-intersection> [1]
End Sequence
</deleted-intersections>
<localTspBusinessRules> local:TspBusinessRules </localTspBusinessRules> [0..1]
</tspBusinessRules>

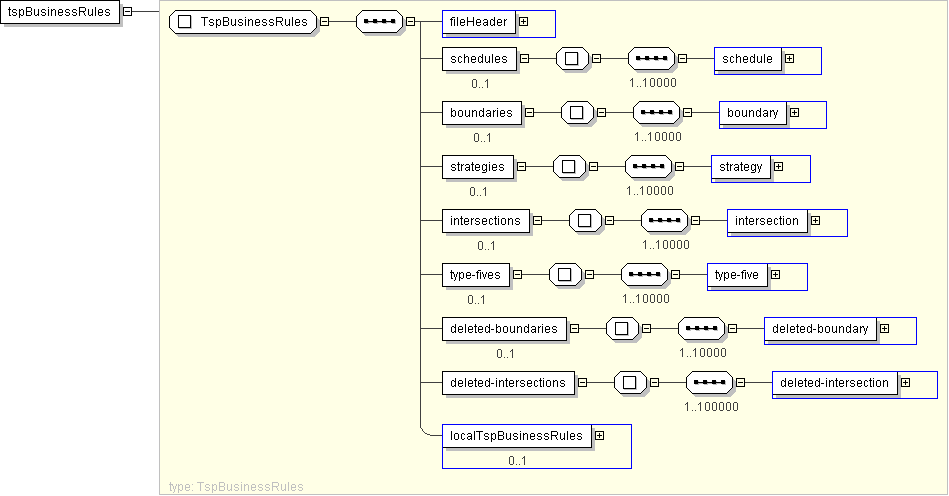

Diagram
h-956766127 h-177279921 h-483386724 h1473905907 h1904165277 h-1239574014 h-368178138 h-1285224369 h786189643
Schema Component Representation
<xs:element name="tspBusinessRules" type=" TspBusinessRules "/>
