Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

Name	TSPScenario5Intersection
Used by (from the same schema document)	Complex Type TspBusinessRules
Abstract	no

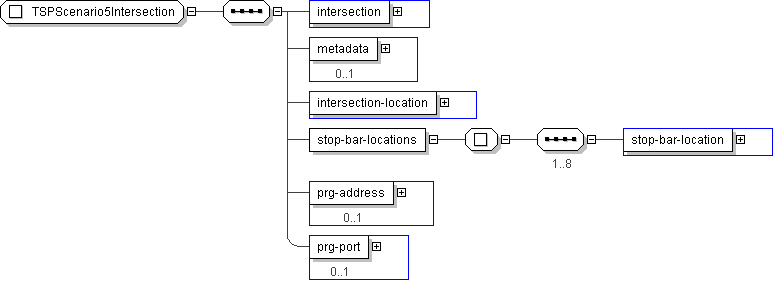

XML Instance Representation

<...>

<intersection> CPTIntersectionIden </intersection> [1]

<metadata> CPTRowMetaData </metadata> [0..1]

<intersection-location> lrms:GeoLocation </intersection-location> [1]

<stop-bar-locations> [1]
Start Sequence [1..8]

<stop-bar-location> lrms:GeoLocation </stop-bar-location> [1]

End Sequence
</stop-bar-locations>

<prg-address> CPT-IP-Address </prg-address> [0..1]

<prg-port> CPT-UDP-TCP-PortNumber </prg-port> [0..1]

</...>

Schema Component Representation

<xs:complexType name="TSPScenario5Intersection">

<xs:sequence>

<xs:element name="intersection" type=" CPTIntersectionIden "/>

<xs:element name="metadata" type=" CPTRowMetaData " minOccurs="0"/>

<xs:element name="intersection-location" type=" lrms:GeoLocation "/>

<xs:element name="stop-bar-locations">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="8">

<xs:element name="stop-bar-location" type=" lrms:GeoLocation "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="prg-address" type=" CPT-IP-Address " minOccurs="0"/>

<xs:element name="prg-port" type=" CPT-UDP-TCP-PortNumber " minOccurs="0"/>

</xs:sequence>

</xs:complexType>
