Documentation for ATIS-Draft-03-00-79

Super-types:	None
Sub-types:	None

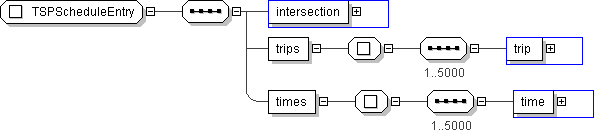

Name	TSPScheduleEntry
Used by (from the same schema document)	Complex Type TspBusinessRules
Abstract	no

XML Instance Representation

<...>

<intersection> CPTIntersectionIden </intersection> [1]

<trips> [1]
Start Sequence [1..5000]

<trip> SCHTripIden </trip> [1]

End Sequence
</trips>

<times> [1]
Start Sequence [1..5000]

<time> SCH-Time </time> [1]

End Sequence
</times>

</...>

Schema Component Representation

<xs:complexType name="TSPScheduleEntry">

<xs:sequence>

<xs:element name="intersection" type=" CPTIntersectionIden "/>

<xs:element name="trips">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5000">

<xs:element name="trip" type=" SCHTripIden "/>

</xs:sequence>

</xs:complexType>

</xs:element>

<xs:element name="times">

<xs:complexType>

<xs:sequence minOccurs="1" maxOccurs="5000">

<xs:element name="time" type=" SCH-Time "/>

</xs:sequence>

</xs:complexType>

</xs:element>

</xs:sequence>

</xs:complexType>
