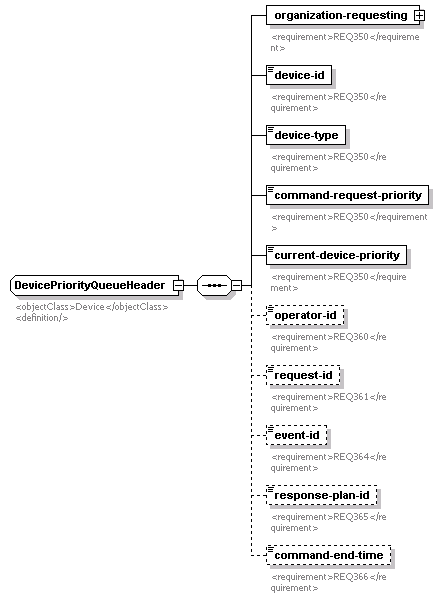

complexType DevicePriorityQueueHeader
diagram
namespace http://www.ite.org/tmdd
children organization-requesting device-id device-type command-request-priority current-device-priority operator-id request-id event-id response-plan-id command-end-time
used by
elements DMSPriorityQueue/device-priority-queue-header HARPriorityQueue/device-priority-queue-header IntersectionSignalPriorityQueue/device-priority-queue-header
annotation
documentation
<objectClass>Device</objectClass>
<definition/>
source <xs:complexType name="DevicePriorityQueueHeader">
  <xs:annotation>
    <xs:documentation>
      <objectClass>Device</objectClass>
      <definition/>
    </xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="organization-requesting" type="OrganizationInformation">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ350</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-id" type="Organization-resource-identifier">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ350</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="device-type" type="Device-type">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ350</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="command-request-priority" type="Device-command-request-priority">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ350</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="current-device-priority" type="Device-command-request-priority">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ350</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ360</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="request-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ361</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ364</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ365</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
    <xs:element name="command-end-time" type="DateTimeZone" minOccurs="0">
      <xs:annotation>
        <xs:documentation>
          <requirement>REQ366</requirement>
        </xs:documentation>
      </xs:annotation>
    </xs:element>
  </xs:sequence>
</xs:complexType>

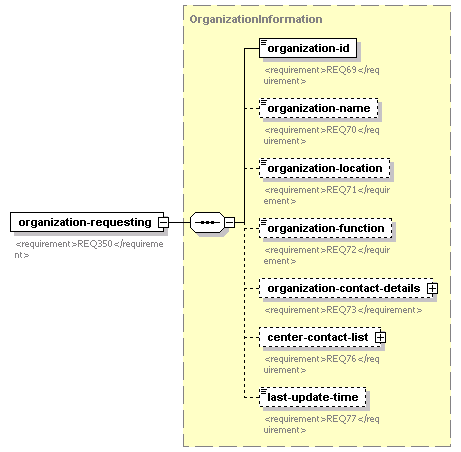

element DevicePriorityQueueHeader/organization-requesting
diagram
type OrganizationInformation
properties
isRef 0
content complex
children organization-id organization-name organization-location organization-function organization-contact-details center-contact-list last-update-time
annotation
documentation
<requirement>REQ350</requirement>
source <xs:element name="organization-requesting" type="OrganizationInformation">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ350</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/device-id
diagram
type Organization-resource-identifier
properties
isRef 0
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ350</requirement>
source <xs:element name="device-id" type="Organization-resource-identifier">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ350</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/device-type
diagram
type Device-type
properties
isRef 0
content simple
annotation
documentation
<requirement>REQ350</requirement>
source <xs:element name="device-type" type="Device-type">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ350</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/command-request-priority
diagram
type Device-command-request-priority
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 10
annotation
documentation
<requirement>REQ350</requirement>
source <xs:element name="command-request-priority" type="Device-command-request-priority">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ350</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/current-device-priority
diagram
type Device-command-request-priority
properties
isRef 0
content simple
facets
minInclusive 1
maxInclusive 10
annotation
documentation
<requirement>REQ350</requirement>
source <xs:element name="current-device-priority" type="Device-command-request-priority">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ350</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/operator-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ360</requirement>
source <xs:element name="operator-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ360</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/request-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ361</requirement>
source <xs:element name="request-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ361</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/event-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ364</requirement>
source <xs:element name="event-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ364</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/response-plan-id
diagram
type Organization-resource-identifier
properties
isRef 0
minOcc 0
maxOcc 1
content simple
facets
minLength 1
maxLength 32
annotation
documentation
<requirement>REQ365</requirement>
source <xs:element name="response-plan-id" type="Organization-resource-identifier" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ365</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>

element DevicePriorityQueueHeader/command-end-time
diagram
type DateTimeZone
properties
isRef 0
minOcc 0
maxOcc 1
content simple
annotation
documentation
<requirement>REQ366</requirement>
source <xs:element name="command-end-time" type="DateTimeZone" minOccurs="0">
  <xs:annotation>
    <xs:documentation>
      <requirement>REQ366</requirement>
    </xs:documentation>
  </xs:annotation>
</xs:element>
